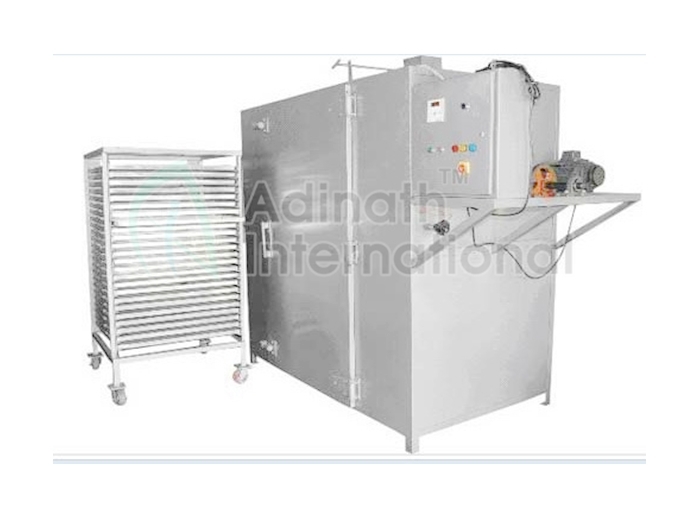

Tray Dryer Description
Tray Dryer is a powder dryer machine uses for drying wide array of powders in pharmaceuticals. Apart from commonly uses in pharmaceutical equipment also having usage in herbal, nutraceuticals, ayurvedic, cosmetic and chemical industries. Powder dries by the mean of hot air provided by the inbuilt blower. Air passed through heaters installed onto side walls of the equipment and reaches in around 80 degree centigrade to the product available on trays. Equipment known for uniform heating throughout the process that works phenomenally across various powder types. Equal heat distribution is the major advantage of pharmaceutical powder dryer. There is little chance of changes to the product characteristics during the process. Huge number of chemicals, food products, raw materials uses for medicine production that preserved in powder form. This herbal powder dryer is extremely effective and eco-friendly too.
Adinath International’s tray dryer is designed to remove moisture from various products efficiently. It is widely used in industries such as pharmaceuticals, herbal products, nutraceuticals, cosmetics, and chemicals. The machine ensures even drying while maintaining the product’s quality.
Salient Features of Tray Dryer Machine
- Doors are provided with gaskets

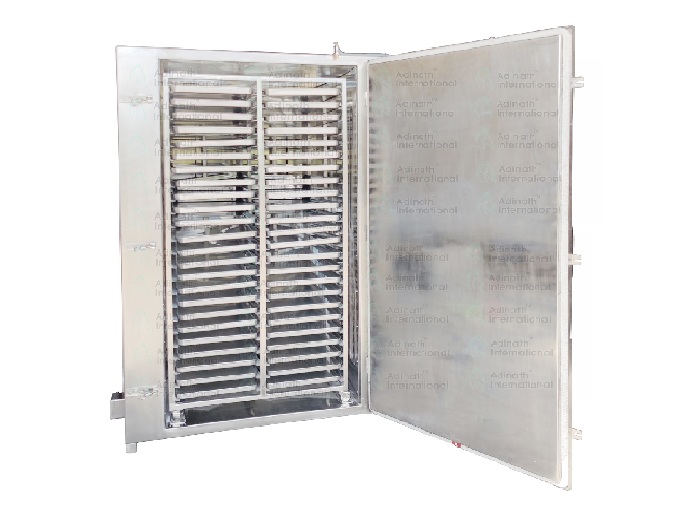

- Stainless steel trays are placed on the movable trolleys
- Dynamically balanced axial flow type blower fans are provided for uniform air circulation in the drying chamber during process
- Machine is provided with control panel board with process timer
- Digital temperature controller cum indicator
- Standard & GMP models available with SS 304/ SS 316/ MS internals & externals
- Stainless steel tray in SS 304/ SS 316 quality
- All stainless steel 304 / 316/ 316L construction for pharmaceutical applications or external mild steel with SS internal contact parts
- Electric, steam, thermic fluid heating
- Control panel board with process timer (Circular chart recorder can be provided on demand at extra cost)
- Sturdy trolleys with castor wheels
- Air filter at inlet (Hepa filter can be provided on demand at extra cost)
- Easy accessibility of impellers for cleaning
- The exhaust duct, blower & air inlet filters can be custom built to keep out of the production area with suitable ducting
Design and Construction
The tray dryer has a strong and durable structure made from high-quality stainless steel (SS 304 or SS 316). It follows Good Manufacturing Practices (GMP), ensuring safety, hygiene, and easy maintenance. The interior is designed for quick cleaning, reducing the risk of contamination.
Operational Efficiency
This tray dryer distributes heat evenly inside the drying chamber, ensuring uniform drying. It achieves this with powerful blower fans that circulate hot air consistently. The machine has a digital temperature controller for accurate heat management. The doors are sealed with gaskets to prevent heat loss, maintaining a stable drying environment.
Versatility in Application
The tray dryer can dry a wide range of products, including pharmaceutical powders, herbal powders, milk powder, ceramic powder, spice powders, and fruit powders. Its design ensures that the product’s color, smell, and taste remain unchanged during drying.
Heating Options
This dryer supports multiple heating methods, including electric, steam, and thermic fluid heating. It can reach temperatures up to 300°C, making it suitable for different drying needs across industries.
User-Friendly Features
The tray dryer is designed for easy operation. Stainless steel trays are placed on movable trolleys for quick loading and unloading. The control panel includes a process timer for efficient cycle management. The machine also allows easy access to impellers for cleaning, ensuring smooth operation with minimal maintenance interruptions.
Working Principle of Powder Tray Dryer
On the one hand the machine’s design is robust while on the other its working principle is performance oriented. The evaporator of this machine absorbs heat from surrounding air through the compressor. High voltage gas enters the condenser and disperses heat into the drying room. The water vapor of materials is drawn due to hot air. This helps achieve the end purpose of drying in an efficient manner.
For more information, related to herbal powder dryer, feel free to get in touch with team Adinath International.
Technical Highlights
- Capacity: Available in 24-tray or 48-tray models
- Tray Size: 16” L x 32” W x 1.25” H
- Power Load: 24-tray – 2 x 0.5 H.P. motors, 48-tray – 2x 1 H.P. motors
- Heating Load (100°C): 24-tray – 6 KW, 48-tray – 9 KW
- Heating Load (200°C): 24-tray – 9 KW, 48-tray – 15 KW
- Heating Load (300°C): 24-tray – 12 KW, 48-tray – 18 KW
- Dimensions (24-tray model): 33”W x 36”D x 36”H (chamber), 76”W x 48”D x 54”H (overall)
- Dimensions (48-tray model): 40”W x 36”D x 72”H (chamber), 80”W x 48”D x 86”H (overall)
- Power Supply: 440V, 3 Phase, 50 Hz
Overall, Adinath International’s tray dryer stands as a reliable and efficient solution for industrial drying needs. Its robust construction, uniform heat distribution, and user-friendly features make it an indispensable asset across multiple industries. It ensures that diverse drying requirements are met with precision and efficiency by preserving the quality of the dried products and offering versatile heating options. For more information, drop a quote request.
Technical Specification of Herbal Powder Dryer
No. of Trays | 24 Trays | 48 Trays |
Size of Tray | 16 inch (L) x 32 inch (W) x 1.25 inch (H) | |
Power Load | 0.5 H.P. x 2 nos. | 1 H.P. x 2 nos. |
No. of Door | One | One |
No. of Blower | Two | Two |
No. of Trolley | One | One |
Heating Load at | ||
|
6 KW (6 x 1000 W) | 9 KW (9 x 1000 W) |
|
9 KW (9 x 1000 W) | 15 KW (15 x 1000 W) |
|
12 KW (12 x 1000 W) | 18 KW (18 x 1000 W) |
Total Heater Load | 12 KW | 18 KW |
Chamber Size | 33” (W) x 36” (D) x 36” (H) | 40” (W) x 36” (D) x 72” (H) |
Overall Size | 76” (W) x 48” (D) x 54” (H) | 80” (W) x 48” (D) x 86” (H) |
Power Voltage | 440 Volts, 3 Phase, 50 Hertz |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
