Description
Powder drying is an essential and effective process of producing dry powder from liquids or slurry by constantly drying using hot gas. There are a number of chemicals, food products and raw materials used for medicine production that preserved in powder form.

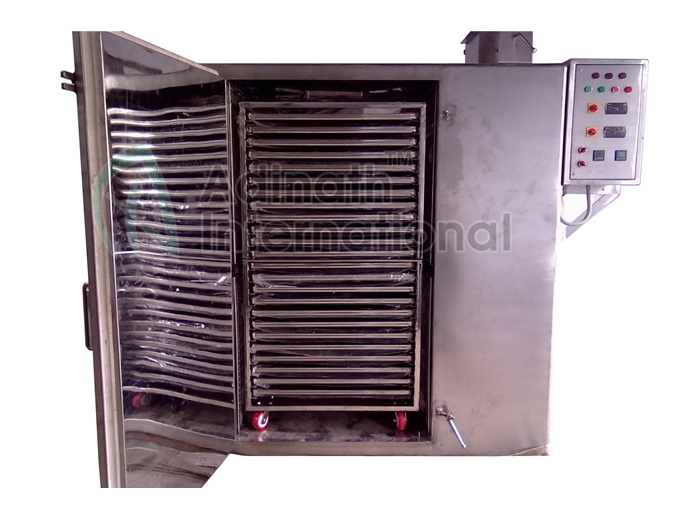

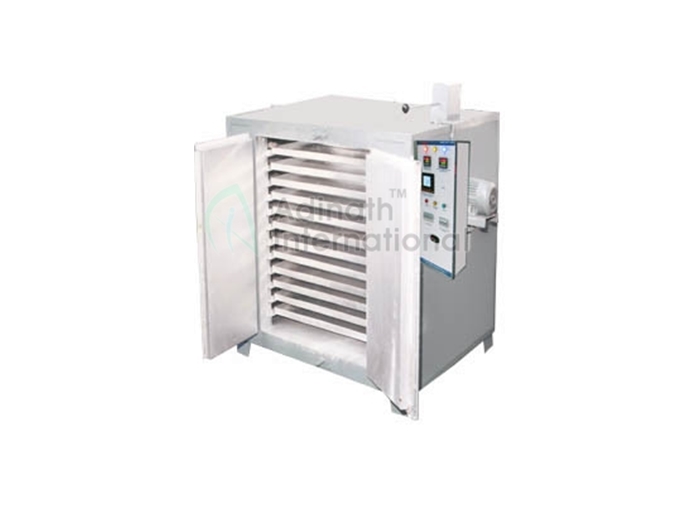

Our herbal powder dryer is effective for drying numerous powders such as herbal powders, pharmaceutical powders, milk powder, ceramic powder, spice powders, fruit powders etc. Our herbal or pharmaceutical powder dryer is extremely effective and eco-friendly too. It is known for uniform heating throughout the process that works phenomenally across the thickness of various powder types. The machine is way efficient than conventional methods. Equal heat distribution and energy efficiency are some of the major advantages of our pharmaceutical powder dryer. The smell, color and taste of the product remains unaffected during the process.
Salient Features of Pharma Powder Dryer
- Doors are provided with gaskets
- Stainless steel trays are placed on the movable trolleys
- Dynamically balanced axial flow type blower fans are provided for uniform air circulation in the drying chamber during process
- Machine is provided with control panel board with process timer
- Digital temperature controller cum indicator
- Standard & GMP models available with SS 304/ SS 316/ MS internals & externals
- Stainless steel tray in SS 304/ SS 316 quality
- All stainless steel 304 / 316/ 316L construction for pharmaceutical applications or external mild steel with SS internal contact parts
- Electric, steam, thermic fluid heating
- Control panel board with process timer (Circular chart recorder can be provided on demand at extra cost)
- Sturdy trolleys with castor wheels
- Air filter at inlet (Hepa filter can be provided on demand at extra cost)
- Easy accessibility of impellers for cleaning
- The exhaust duct, blower & air inlet filters can be custom built to keep out of the production area with suitable ducting
Working Principle of Herbal Powder Dryer
On the one hand the machine’s design is robust while on the other its working principle is performance oriented. The evaporator of this machine absorbs heat from surrounding air through the compressor. High voltage gas enters the condenser and disperses heat into the drying room. The water vapor of materials is drawn due to hot air. This helps achieve the end purpose of drying in an efficient manner.
For more information, related to herbal powder dryer, feel free to get in touch with team Adinath International.

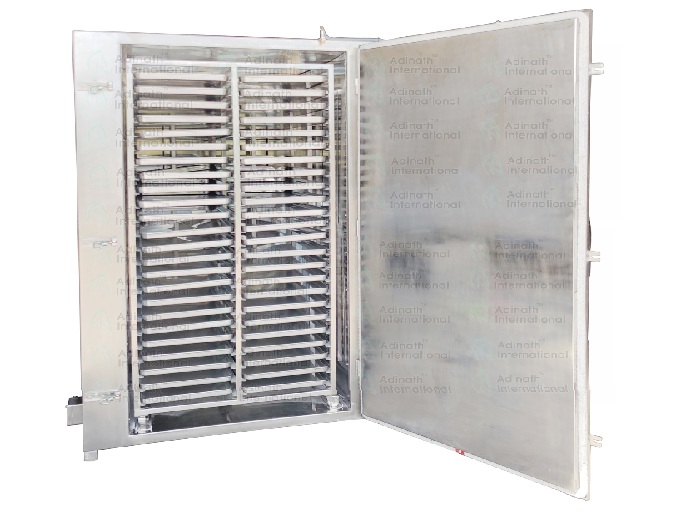

Technical Specification of Tray Dryer
| Capacity in Trays | 24 Trays | 48 Trays |
| Tray Size | 16 inch (L) x 32 inch (W) x 1.25 inch (H) | |
| Motor H.P. | 0.5 H.P. x 2 nos. | 1 H.P. x 2 nos. |
| No. of Door | One | One |
| No. of Blower | Two | Two |
| No. of Trolley | One | One |
| Heating Load at | ||
|
6 KW (6 x 1000 W) | 9 KW (9 x 1000 W) |
|
9 KW (9 x 1000 W) | 15 KW (15 x 1000 W) |
|
12 KW (12 x 1000 W) | 18 KW (18 x 1000 W) |
| Total Heater Load | 12 KW | 18 KW |
| Chamber Size | 33” (W) x 36” (D) x 36” (H) | 40” (W) x 36” (D) x 72” (H) |
| Overall Size | 76” (W) x 48” (D) x 54” (H) | 80” (W) x 48” (D) x 86” (H) |
| Power Voltage | 440 Volts, 3 Phase, 50 Hertz | |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
