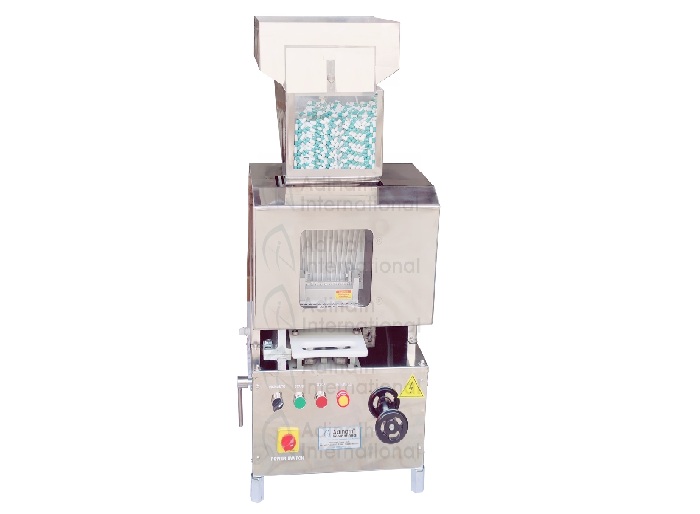

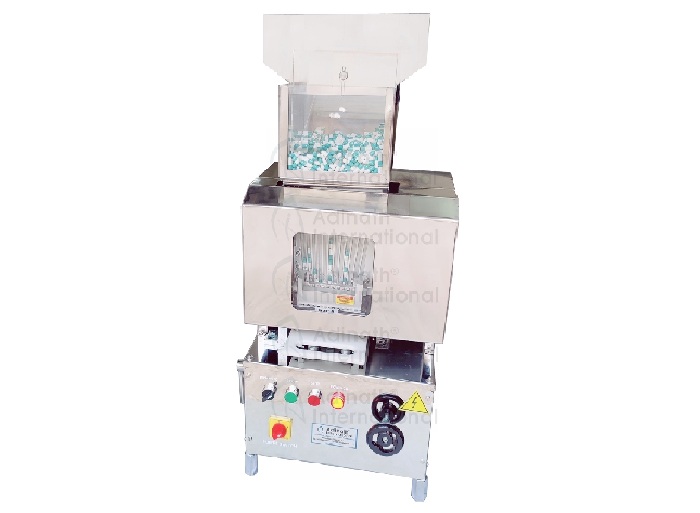

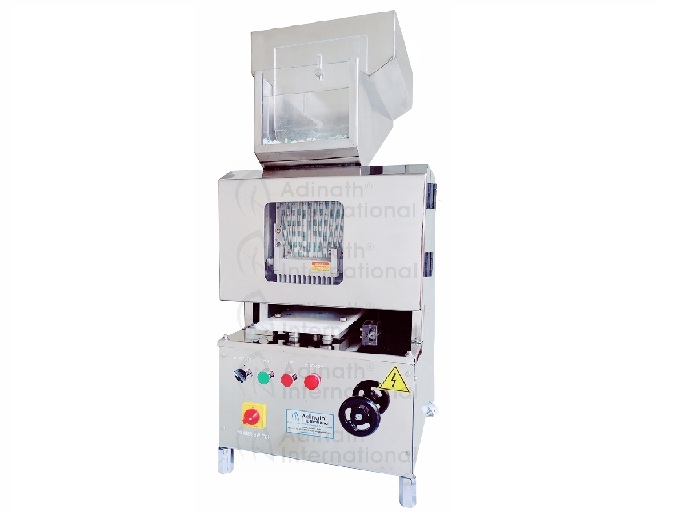

The equipment has been as ideal for medium/large scale pharmaceutical companies. The equipment is simple to operate it save time and labor. The automatic capsule loader is compact occupies minimum space; it gives higher production with much better standard of accuracy.
Salient Features of Automatic Capsule Loader
Low investment high output.
Significant difference in your production department.
Simple to operate, can be handled by semi skilled person.
No setting system for any change part.
Machine stop automatically after loading is complete.
Process Operation of Automatic Capsule Loader
Loader automatically loads empty capsule in the loading plate for manually operated capsule filling machine, hence it take normally 5 minutes to load empty capsule in 300 holes loading plate manually, this machine cuts down that time to only 30 second. It supplied filled loading plates for 2-3 capsule filling machine. Thus increase the production on one hand and reduce the number of operator on other hand.
Fill 300- holes plate in 30 seconds give an output of 36,000 capsule per/hour
The machine is manufactured to suit the following capsule size combination 00/0/1/2/3 or 4/5

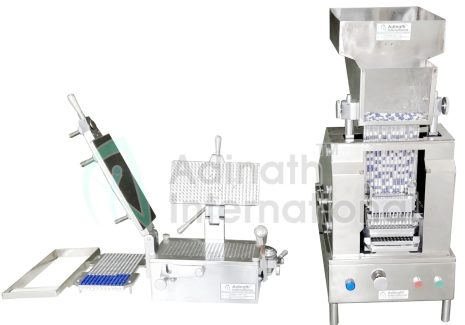

Automatic Capsule Loader is as ideal choice for medium & large scale pharmaceutical companies. This 300 Holes Automatic Capsule Loader uses to fill plates of Manual Capsule Filling Machine. The equipment is simple to operate and time & labor saver. The automatic capsule loader is compact occupies minimum space; it gives higher production with much better standard of accuracy.
Technical Specification of Automatic Capsule Loader
||Up to 20000 Capsules/hour
|(depends upon operators’ efficiency)
||Size 00, 0, 1, 2, 3 and 4 (through format parts)
|Sequence of holes
||25 x 12 = 300
||220 Volts, Single Phase, 50 Hertz
||630mm X 430mm X 780mm approx.
||80 Kgs. Approx.
||120 Kgs. Approx.
|Column 1 Value 9
||Column 2 Value 9
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
