Description

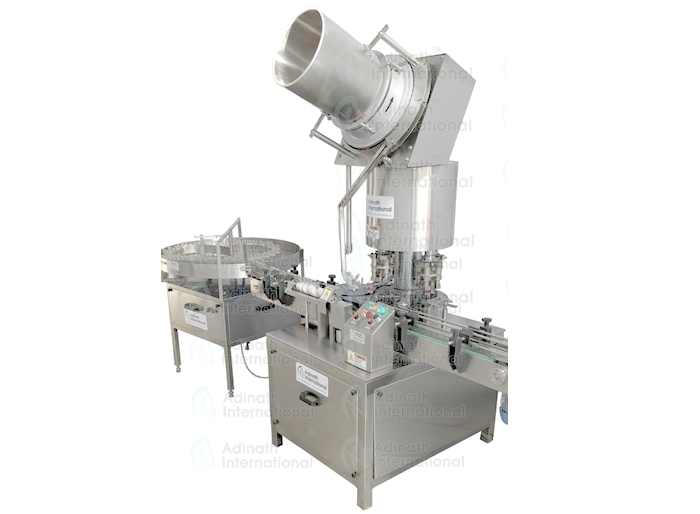

Adinath International is a reputed crown capping machine manufacturer in India offering world-class crown capping machines to its global clientele across various industries. Our crown capping machines are uses across various sectors. Our crown capping machines come with a variable capping range from 20 to 200 bottles per minute through different models. Ideal for capping glass, plastic, PET, LDPE, HDPE and other bottle types, Adinath International’s six head crown corking machine can produce up to 120 bottles per minute. On the other hand, single head bottle crown capping machine can produce up to 40 bottles per minute. We also offer four head bottle capping machine with a production capacity of 80 bottles per minute.
Features of Crown Capping Machine
- cGMP compliant model
- Contact parts made of stainless steel ensure durability
- “No-bottle, No-Cap” system
- Facilitated with ‘Container overturn- machine stop’ mechanism. (Optional)
- Hassle-free setting and easy change-over from one size container to another using a single rachet.
- Digital production output counter.
- Machine constructed with a stainless steel finish.
- Star wheel of the machine is equipped with a safety clutch that stops the operation in case of jamming or overloading.
- Easy dismantling of the hopper for cleaning purposes.
- Safety features to prevent bottle breakage and jamming.
- Availability of IQ/OQ documentation optionally.
- Speed can be adjusted using VFD.
- Single motor synchronization system for conveyor, star wheel and platform turret.
- PLC system with GUI can be provided on demand. (optional)
Working Principle of Crown Capping Machine
Filled bottles move on the conveyor belt, and they are then fed into an in-feed star wheel of in-feed worm. During their movement in feed start wheel, caps are picked by bottles one by one from the delivery chute. Descending rotary sealing heads are used to hold the bottles’ neck with desired pressure. A rotating scramble is facilitated to accurately position the caps mechanically and the sealing is done in a programmed roll-in fashion. When the chute is filled up after the caps are directed into it, the rotating unscramble drive gets disengaged. This helps prevent any damage to the caps. Rotating sealing head brings into action the sealing roller and sealing cam is also there to facilitate the movement of sealing and threading rollers. The sealed bottles are then discharged using a star wheel on the conveyor.
Technical Specification of Crown Capping Machine
Model | ACSR-60 | ACSR-120 | ACSR-200 |
No. of Capping Heads | Single | Four | Eight |
Production Rate | Up to 50 Containers/Minute | Up to 100 Containers/Minute | Up to 200 Containers/Minute |
Container Diameter: | 24mm to 90mm | 24mm to 90mm | 24mm to 90mm |
Container Height: | 50mm to 250mm | 50mm to 250mm | 50mm to 250mm |
Cap Diameter: | 20mm, 25mm & 28mm with the help of change parts | 20mm, 25mm & 28mm with the help of change parts | 20mm, 25mm & 28mm with the help of change parts |
Power Specification: | 1 H.P. | 1 H.P. | 2 H.P. |
Electrical characteristics | 440 Volts, 3 Phase, 50 Hertz, 4 Wire System | 440 Volts, 3 Phase, 50 Hertz, 4 Wire System | 440 Volts, 3 Phase, 50 Hertz, 4 Wire System |
Conveyor Height | 800mm to 900mm adjustable | 800mm to 900mm adjustable | 800mm to 900mm adjustable |
Optional Accessories | Safety Cabinet Covering Machine | Safety Cabinet Covering Machine | Safety Cabinet Covering Machine |
– | PLC with HMI | PLC with HMI | PLC with HMI |
Overall Dimension | 1500mm (L) X 850mm (W) X 1800mm (H) approx. | 1675 (L) x 1000mm (W) x 1800mm (H) approx. | 2000 (L) x 1000mm (W) x 1800mm (H) approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
