Description

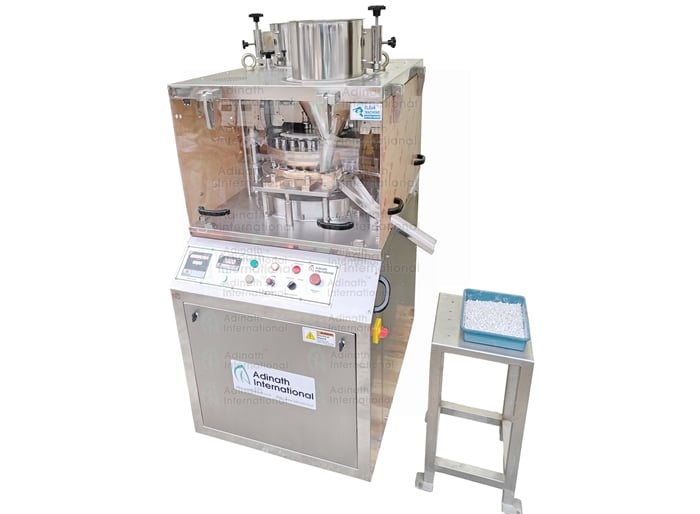

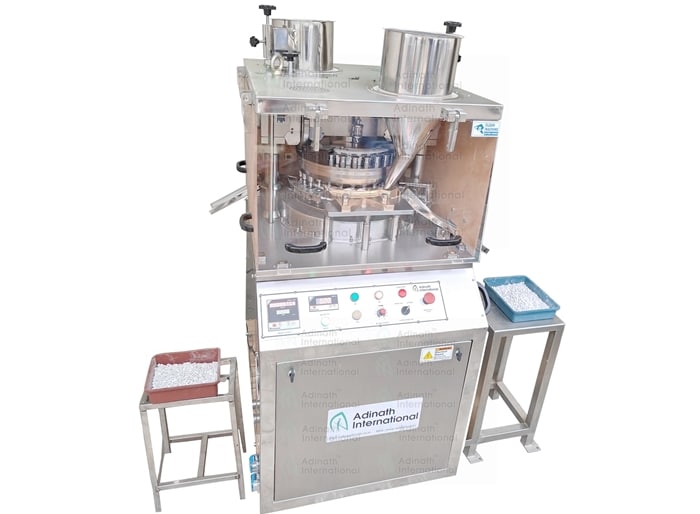

Single Side Rotary Tablet Press Machine is designed to cater to small to medium batch production needs. This cGMP compliant model is uses in various industries such as food, confectionary, and chemical to name a few. This machine is also known as GMP model tablet press. This highly functional machine has 12, 16 and 20 stations.

Sturdy in construction the machine has all contact parts made of SS 316 materials. Since the machine’s main motor has a central gear box that not only minimizes wear and tear, but also reduces the noise levels by a huge margin. It also has an AC variable frequency drive which controls the main motor drive and turret speed. In order to extend the longevity of turret, the coating on it is of electro less nickel plating. This also prevents the turret from rusting easily.

This machine is known for its longevity, performance and efficiency of the highest standards.

Salient Features of Tablet Press Machine

  • cGMP Model.
  • Powerful Pre Compression and Main Compression force.
  • Turret is driven by centrally fitted oil emerged gear box.
  • Available with Two Layer Tablet Compression Facility. (optional)
  • Maximum Speed of Turret up to 70 RPM.
  • 100 KN Main Compression Force.
  • 100 KN Pre-compression Force.
  • Available in tooling combination of D, B & BB (different models)
  • Pressure adjustment controls from outside area.
  • Pressure loading and overloading pressure release mechanism through Hydro-Pneumatic Power Pack System.
  • Main motor and force feeder motor driven through VFD.
  • Auto lubrication arrangements hence less maintenance.
  • Upper Punch Penetration.
  • Anti-Vibration Mounts.
  • Electronic Digital Tablet Counter cum RPM indicator.
  • Interlock Switches to all upper guards.
  • Pneumatic powder loading system. (optional)
  • IQ/OQ documentation can be provided.
  • PLC system with Graphical User Interface can be offered. (optional)

Working Principle of Tablet Press Machine

GMP model tablet press uses granulated powder to produce medicines (tablets and pills). There are punches and a die that together form a cavity. The powder is entered into this cavity and when punches are pressed with a particular force, the material gets fused. Rotary tablet press machine consists of multiple stations and they rotate to compress powder and to form tablets.

Tablet compression machine basically works on hydraulic pressure. This pressure performs key role in any type of Tablet Machine. It transmitted unreduced through the static fluid. Any external applied pressure is transmitted through static fluid to all directions in the same proposition. which resulting make suitable to increase pressure.

To form a tablet, the granulated powder material must be metered into a cavity formed by two punches and a die, and then the punches must be pressed together with great force to fuse the material together. There are two types of tablet presses called Single Station Tablet Press and Multi Station Tablet Press. Working of these machines differs in terms of production output and feature requirements.

Technical Specification of Single Rotary Tablet Press Machine

Model 16D 20D 24D
Number of Stations 16 20 24
Type of Tooling Punch D D DB
Output – Tablets / hour approx. 13,440 – 40,320 16,800 – 50,400 19,320 – 57,950
Max. Operating Pressure 100 KN 100 KN 65 KN
Max. Tablet Dia 25mm 25mm 16mm
Max. Depth of fill 20.5 mm 20.5 mm 17.5 mm
Upper Punch Penetration 1.5 – 8 mm 1.5 – 8 mm 1.5 – 8 mm
Main Electric Motor 3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz. 3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz. 3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.
Overall Dimension (mm) approx. 980 L x 1020 W x 1820 H 980 L x 1020 W x 1820 H 980 L x 1020 W x 1820 H
Net Weight (Kgs) approx. 1150 1150 1150

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
