Description

Electronic Tablet Counting Machine or tablet counter is sensor based counting machine which count & fill tablets into bottles, jars, bags and pouches. Tablet count can be adjusted from HMI screen of the machine which is monitored through programmable logic control. Interestingly same machine can be uses for counting capsules also, due to this it is also called tablet and capsule counting machine. This pharmaceutical tablet counter is suitable to count wide range of coated tablets uses in pharmaceutical industry. Tablet counting and filling machine principle is based in PLC hence it provides higher grade of accuracy. Equipment also having usage in herbal, nutraceutical, cosmetic & food industry.

Features of Tablet Counting Machine

  • Suitable to pack tablets and capsules both

  • All contact parts made from Stainless Steel 316 and non-contact parts made from Stainless Steel 304 materials.

  • PLC based control panel.

  • Sensor based counting mechanism.

  • User friendly.

  • Very easy to clean

  • Micro Processor base highly efficient.

  • Special dust extractor to remove dust particles from the passage to the container (optional if required)

Working Process of Tablet Counting Machine

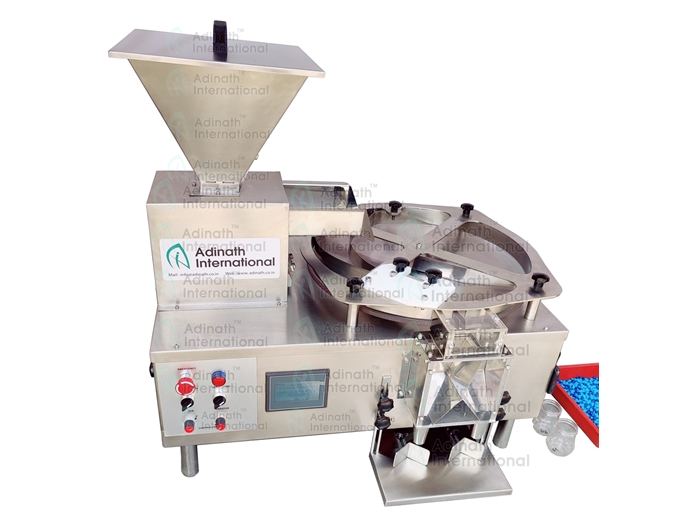

Machine having tablet hopper, disc, vibrator and bottle holding platform. Tablets loaded onto hopper in bulk from where it delivers to the disc through vibrator. Vibration can be adjusted through variable frequency port provided onto machine. After rotating onto disc tablets pass through guide rail which deliver them to delivery chute while passing from sensor.  Delivery chute is having two discharge position covered with a flap which move left & right to place capsules into two different bottles. When flap is at right side then it deliver capsules onto left side of bottles and when flap is on left side then it delivers capsules onto right side of bottles. Sensor count capsules and after reaching required number of tablets it give instruction to flap to work. Through this mechanism pre-determined number of tablets filled in each bottle.

Suitability of Tablet Counting Machine

Tablet Counting Machine is suitable for below mentioned tablets and capsules:

  • Pharmaceutical Coated Tablets
  • Nutraceutical Coated Tablets
  • Herbal & Ayurvedic Coated Tablets
  • Hard Gelatin Capsules
  • Vegetarian Capsules
  • HPMC Capsules

Note: In case of Tablets machine is suitable for coated tablets only. Machine is not suitable for uncoated tablets.

Application of Tablet Counting Machine

  • Pharmaceutical Industry
  • Biotech Industry
  • Nutraceuticals
  • Herbal & Ayurveda
  • Traditional Medicines
  • Cosmetic Industry
  • Food Industry

Production Output of Tablet Counting Machine

Tablet Size Output
5mm 600 to 1000 per minute approx.
8mm 280 to 700 per minute approx.
9mm 200 to 500 per minute approx.
11mm 120 to 300 per minute approx.
15mm 80 to 200 per minute approx.

Technical Specification of Capsule Counting Machine

Specification Description
Operation Mode Programmable Logic Control
Control Panel HMI based touch screen Panel
Contact Parts Stainless Steel 316
Non-Contact Parts Stainless Steel 304
Charging Hopper Stainless Steel 316, Mirror finish
Vibrator 45 V AC Vibrator, Side cover made from Stainless Steel 304
Discharge Chute Stainless Steel 316, Mirror finish
Power Voltage 220 Volts, Single Phase 50 Hertz
Overall Dimension 400mm (L) x 400mm (W) x 750mm (H) approx.

Note: Power voltage can be adjusted as per customer’s domestic power voltage requirements.
