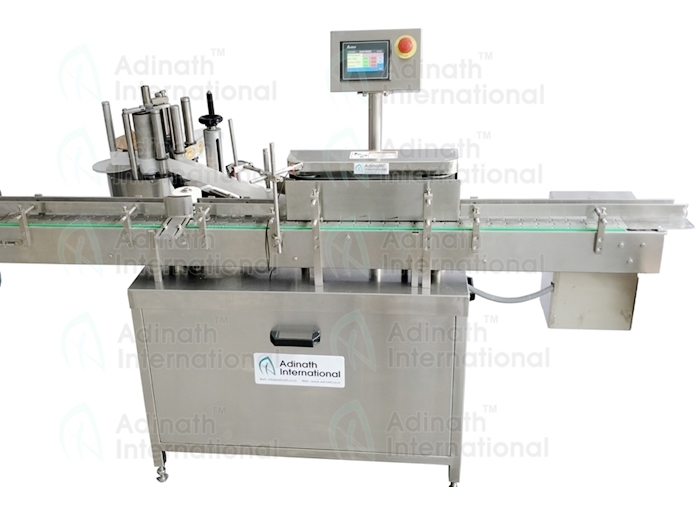

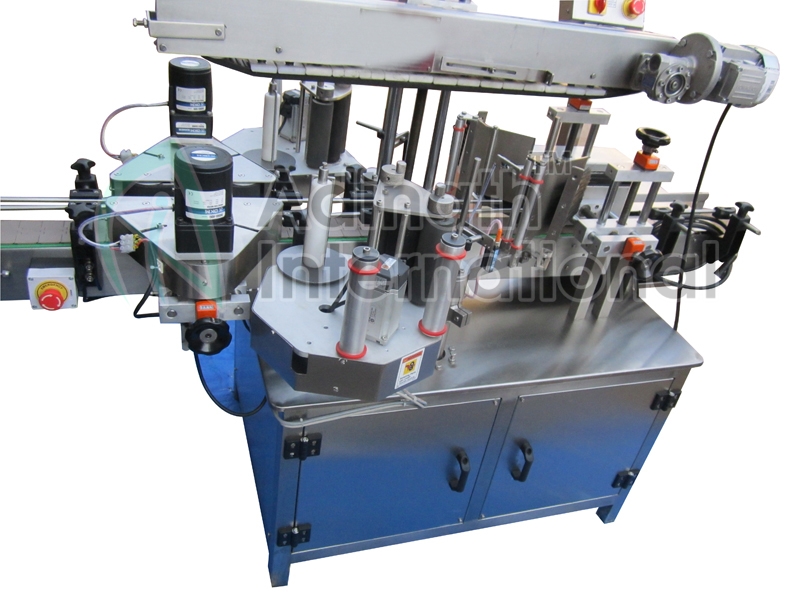

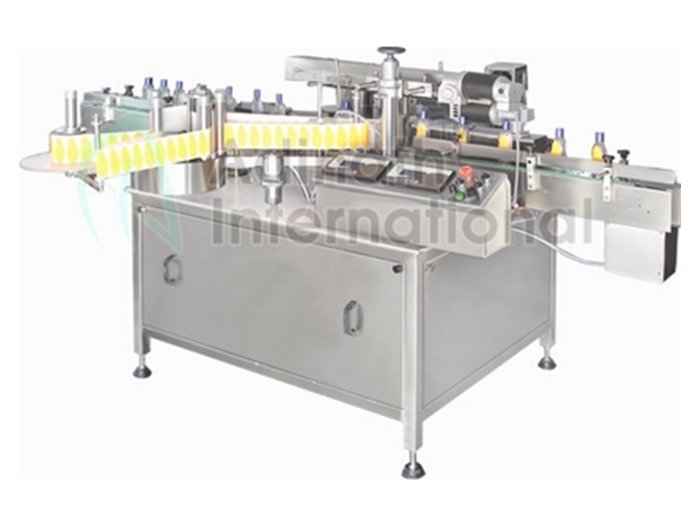

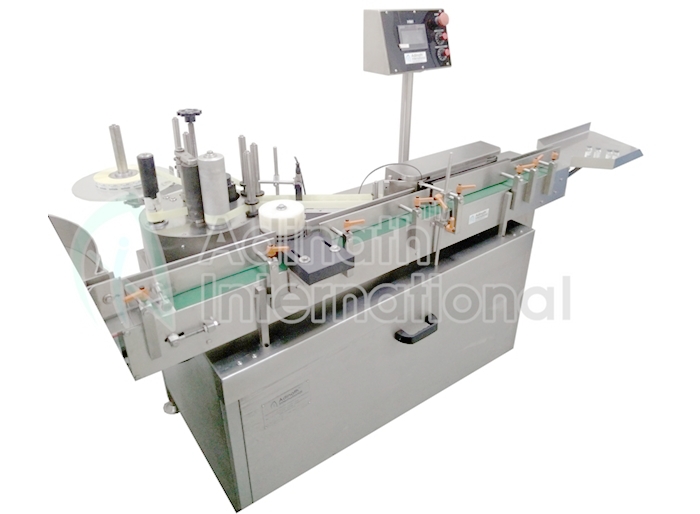

Description
Automatic front and back sticker labeling machine is a fully automatic labeling machine that is sturdy and used to apply sticker labels on the front and back of bottles of various shapes and sizes. Packagers can leverage this machine to apply sticker labels on the front and back of oval, rectangular, square and round bottles. With a processor controlled label dispensing system, a sensing system and a unique single point synchronized speed control system, the machine offers high productivity. It can offer a production output as high as 120 labels per minute. There is no need to manually feed and store label length data. Understandably, our automatic two side front and back labeling machine eliminates the need of retrieving data, making changes and restarting the machine.
Adinath’s automatic two side front and back labeling machine comprises a touch screen for enhanced accessibility. Owing to its precise technology and VFDs, the machine makes precise labeling on single side or double side a breeze.
This machine is profusely used for labeling bottles containing:
- Dry syrup
- Cosmetics
- Edible oil
- Lubricant oil
- Hair oil
- Talcum powder
- Hair developer
- Cosmetic lotion
Adinath International is a premier automatic front, back and top side labeling machine manufacturer in India with a proven track record. The firm is engaged in the development of front, back and top side labeling machines which are widely used in cosmetic, food, pharmaceutical, chemical and Ayurvedic industries. As a leading automatic labeling machine manufacturer in India, our front, back and top side labeling machine is ideal for labeling jars, containers, cans, bottles and tins of various shapes and sizes. Whether it is round, flat, or square labeling this machine does it with sheer ease.
This machine is equipped with a single-point synchronized speed control system and an in-built automated label length detection system. This label length detection system eliminates the need of feeding and storing label length data manually. The user doesn’t have to worry about storing and retrieving data for different label sizes and this also eliminates the need to restart the machine every time you need to do so.
Features of Labeling Machine
- High productivity
- No machine down time and hence time-saving
- Micro processor control label dispending mechanism with sensing system
- Turn table for container feeding and online transfer of containers from capping and inspection machine to the labeling point and packing conveyor system thereafter (Optional)
- Toughened glass or acrylic safety cabinet (Optional)
- Single pot on-line speed variation control
- Apt for wrap around, partial and overlap labeling
- Built-in protection against voltage fluctuations
- Hassle-free label application height adjustment
Working Principle of Sticker Labeler

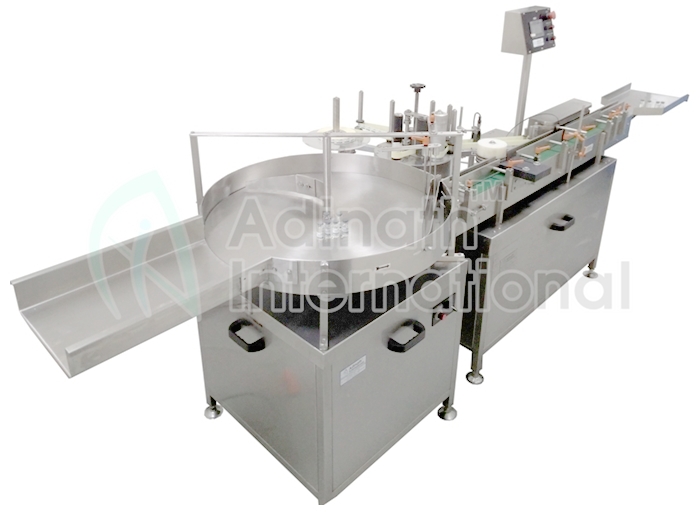

Load the bottles on the infeed turn table to transfer them to machine’s conveyor. Bottles reach the labeling point for wrap around operation. The machine is equipped with an electronic product sensor that senses the container and applies a label from self-adhesive label roll. You can also choose to have a batch printing device for printing batch no. and other pieces of information. The machine ensures a flawless label fixing. To ensure the highest quality standards of barcode and print, you can also go for a camera based vision inspection system which is optional.
Technical Specification of Labeler Equipment
Model | AVSL 80 | AVSL 150 | AVSL 250 |
Vial Sizes | 2ml to 250ml | 2ml to 250ml | 2ml to 250ml |
Speed | Up to 60 Labels per minute depending on container and label characteristics | Up to 120 Labels per minute depending on container and label characteristics | Up to 200 Labels per minute depending on container and label characteristics |
Label Height | 8mm to 90mm | 8mm to 90mm | 8mm to 90mm |
Label Length | 12mm min. | 12mm min. | 12mm min. |
Label Roll Dia. | 400mm | 400mm | 400mm |
Label Roll Core Dia. | 75 / 76mm | 75 / 76mm | 75 / 76mm |
Gap Between two Labels | 3mm approx. | 3mm approx. | 3mm approx. |
Power Load | 1 H. P. | 1.5 H. P. | 3 H. P. |
Power Voltage | 220 VAC Single Phase Power Supply (50/60 Hz) | 220 VAC Single Phase Power Supply (50/60 Hz) | 220 VAC Single Phase Power Supply (50/60 Hz) |
Product Feeding Belt height | 850mm to 950mm adjustable | 850mm to 950mm adjustable | 850mm to 950mm adjustable |
Machine footprint | 1500mm(L) X 1200mm(W) X 1100mm (H) approx. | 2000mm(L) X 1350mm(W) X 1100mm (H) approx. | 2500mm(L) X 1350mm(W) X 1100mm (H) approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
