Description

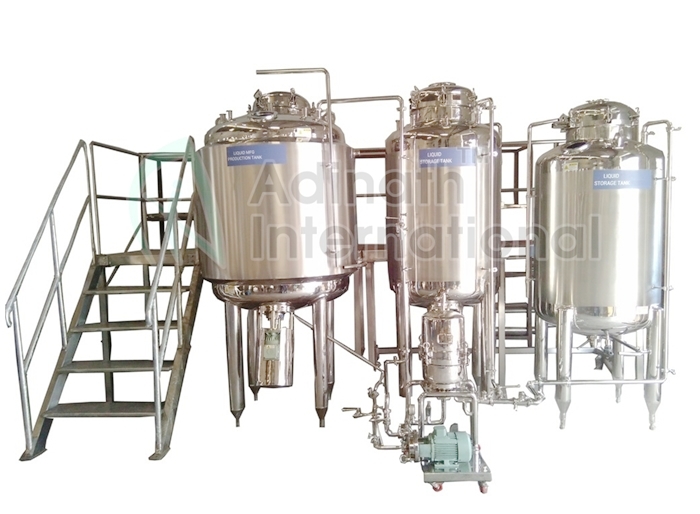

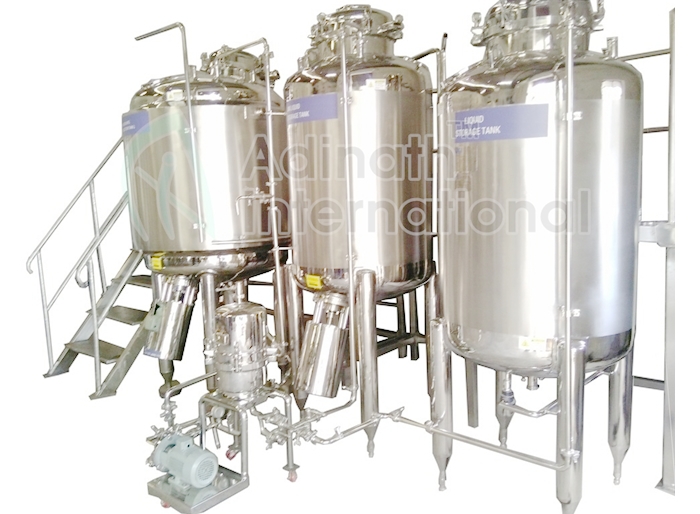

The Liquid Syrup Manufacturing Plants are ideal tools for the pharmaceutical industry for the production of Oral Liquids. It is specially designed to take care of two critical factors which directly affect the quality of the Liquids. Minimum manual handling of Liquid and effective cleanness during manufacturing. Adinth offers Syrup Manufacturing Plants capacity ranges from 50 Liters to 20,000 Liters.

Needless to say, it also provides the benefits of the effective manpower utilization.

Salient Features of Syrup Manufacturing Plant

  • The Plant is designed to be operated only by one operator and one helper.

  • All material transfer are done by vacuum or by transfer pumps.

  • All the vessels are CGMP (paint free construction)

  • The gaskets used are of silicon (food grade).

  • All contact parts are of S.S. 304 quality material (SS316 provided on demand) & finished to class 4B (mirror) finish and are crevice free.

  • The entry of stirrer & high speed emulsifier are from top. In – line Emulsifier (as per customer choice) provided on demand. (Optional)

  • All vessels are suitable for internal pressure of 1 kg./sq. cm. and hence can be sterilized.

  • All pipes, pipe fittings and valves are of SS304 / SS316 (as per customer requirement) seamless quality, internally electro polished, with tri-clover ended joints.

  • The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.

  • All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.

  • A micro processor based automatic operating plant can be designed as per requirement. (Optional)

  • All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.

Process Operation of Syrup Manufacturing Plant

  • This system consist of a closed circuit manufacturing facility feeding of Sugar/Water Phase to loading the Volumetric Liquid Filling Machine.
  • The Sugar and Water, are load with vacuum system or by mechanical system or manually.

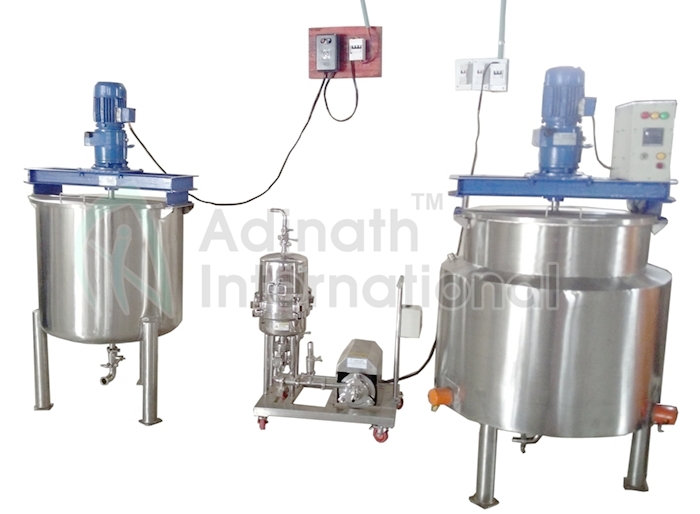

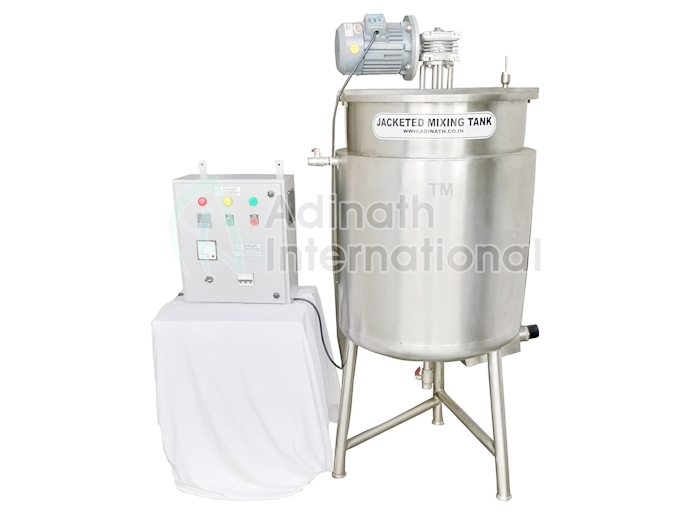

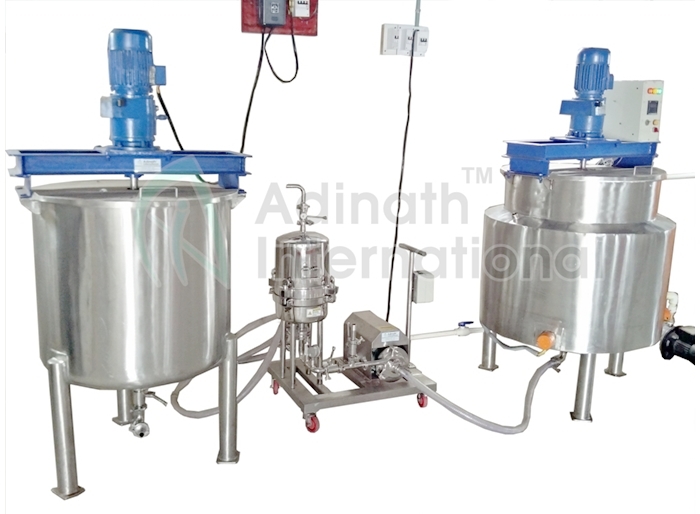

  • The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating (In small model) / steam heating facility (in bigger size model). The sugar syrup is prepared at required temperature & are transferred to Manufacturing Vessel by vacuum or by transfer pump.
  • The product during emulsion formation is recirculated through In-Line Homoginizer or Liquid Transfer Pump. (Optional Facility)
  • The Pump also discharges the product in the Storage Vessel.
  • The Storage Vessel is then taken to the filling area (if it is small capacity) and is connected to again Liquid Transfer pump. Or Storage Vessel remain fixed (in bigger size) & pump transfer the Liquids in the float tank which is connected with filling machine.
  • The entire plant can be operated by centralized operating panel by one operator
  • The plant is equipped with an electrical control panel with digital temperature indicators / controllers and digital timers.
  • Minimum two batches per shift of the same product can be assured in this plant.
  • This plant conforms to CGMP standards (paint free Construction).
