• V Con Blender Machine
Request A Quick Quote

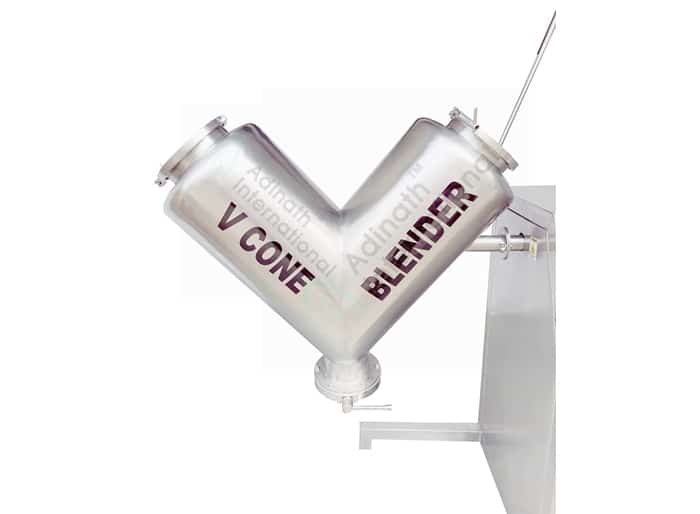

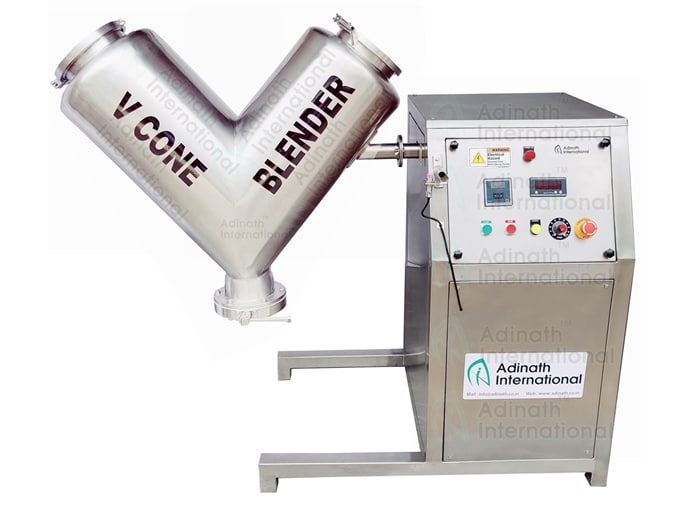

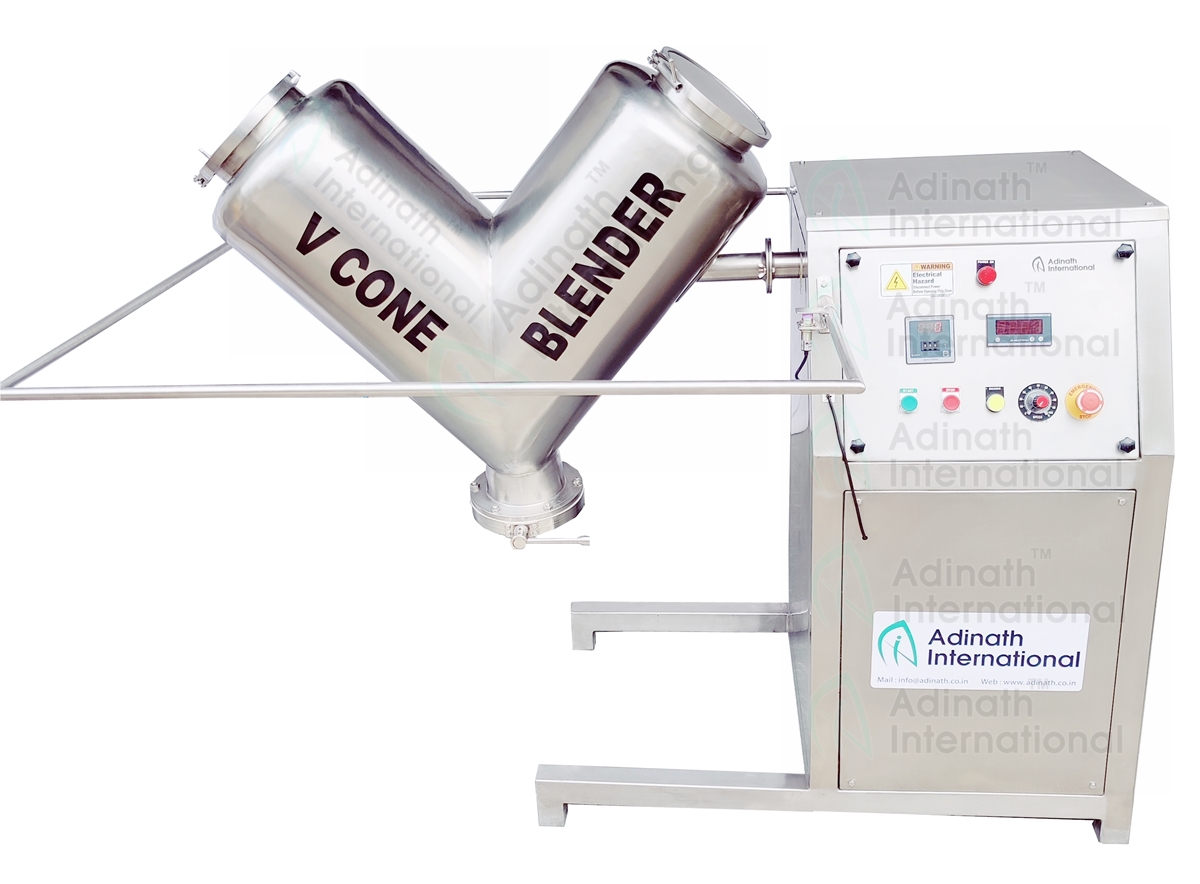

V cone blender or V type blender is one of the most sought after blenders or tumblers. This blender is preferred over other blenders owing to their short and efficient blending periods. This blender comprises two cylindrical shells that join at an angle of 75°C to 90°C.

As a prime manufacturer of V type blender, we can vouch for the countless benefits offered by this machine. Easy to clean and maintain, V cone mixer makes charging and discharging of materials a cake-walk and it can be used for fragile materials as well.

V Cone blenders are designed to perform a number of mixing and blending operations of powder materials. These operations include both gentle and extremely vigorous type blending and mixing. Also called V shape mixer, this equipment is profusely uses in a number of industries including cosmetic, pharmaceutical and chemical. It comprises two inclined cylinders which are fixed together at an angle of 70° to 90° to create a conical shape. When the rotation takes place in the shell materials are crushed and mixed with the highest level of efficiency possible. Recurring converging and diverging motion of material and increased frictional contact between the material and the barrel’s straight sides makes homogeneous mixing possible in the equipment. Our range having small v cone blender of 5 liters to industrial v cone blender 5000 liters capacity.

Working Principle of V Cone Blender:

We offer V shape mixers of premium quality and one of the main mechanisms of these blenders is diffusion. Diffusion is achieved by small scale randomized motion of solid particles. The machine is designed in such a way that blending movements add to the mobility of individual particles and thus enhance diffusive blending. If you need precise blend formulations, the V type blender has got to be your obvious pick. The recommended fill up volume for V cone mixer is about 50 to 70 percent of the total volume. You must know that shear forces are low at low blending speeds and higher blending speeds facilitate higher shear forces.

For more information related to our V type blender and its benefits, feel free to get in touch with us.

The main mechanism of this equipment is diffusion. Small scale random motion of tiny particles characterizes diffusion blending in this machine. Better mobility of small particles is achieved due to blender movements and particles are evenly distributed over a fresh interface. You must not exceed the recommended fill up volume of material. It should range between 50 to 60 percent of the total blender volume. Shear forces are low at low blending speeds and high blending speeds offer more shear, but you need to watch out for the critical speed.

Applications of V Cone Mixer:

V blenders or V cone mixers are commonly used for the dry blending of free flowing solids. They are also used for-

  • Pigments
  • Milk powder and coffee
  • Animal feeds
  • Plastic powders
  • Dry flavors
  • Cosmetics
  • Fertilizers
  • Many other applications

This equipment is preferred because of the short blending times it offers. Adinath International is a recognized V cone blender manufacturer in India offering V shape mixers to its global client-base for a while now. We offer V blenders in a variety of sizes and capacities as well as optional accessories you may need. There are several advantages of using a V cone blender such as:

  • Easy charging and discharging of materials
  • Useful even for fragile materials and minimum attrition due to the absence of moving blades
  • Near complete discharge of product material and that’s why better than horizontal blenders
  • No risk of product contamination as there is no shaft projection
  • Easy to use, clean and maintain

Technical Specification of V Shaped Mixer

Model No. Gross Capacity approx. Working Capacity approx. Overall Dimensions (in mm) (L) x (W) x (H) approx. Discharge Height Charge Opening Power Supply
VCB-5 16 Ltrs 10 Ltrs 750x580x650 300mm 100mm 0.5 H.P.
VCB-10 35 Ltrs 20 Ltrs 1100x450x1200 300mm 100mm 0.5 H.P.
VCB-25 80 Ltrs 50 Ltrs 1200x600x300 450mm 150mm 1.0 H.P.
VCB-50 150 Ltrs 100 Ltrs 1400x800x1500 450mm 150mm 2.0 H.P.
VCB-100 300 Ltrs 200 Ltrs 1850x900x1900 450mm 200mm 2.0 H.P.
VCB-150 470 Ltrs 300 Ltrs 2000x1100x2000 450mm 200mm 5.0 H.P.
VCB-200 615 Ltrs 400 Ltrs 2100x1200x2100 450mm 200mm 6.0 H.P.
VCB-250 770 Ltrs 500 Ltrs 2200x1300x2200 450mm 200mm 7.5 H.P.
VCB-300 1000 Ltrs 600 Ltrs 2300x1400x2300 450mm 200mm 7.5 H.P.
VCB-400 1340 Ltrs 800 Ltrs 2350x1800x2350 600mm 250mm 7.5 H.P.
VCB-500 1500 Ltrs 1000 Ltrs 2400x1900x2400 800mm 250mm 10 H.P.
VCB-650 2000 Ltrs 1300 Ltrs 2800x2100x2700 800mm 250/400 mm 10 H.P.
VCB-750 2500 Ltrs 1500 Ltrs 3000x2200x2600 800mm 250/400 mm 10 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
