Description

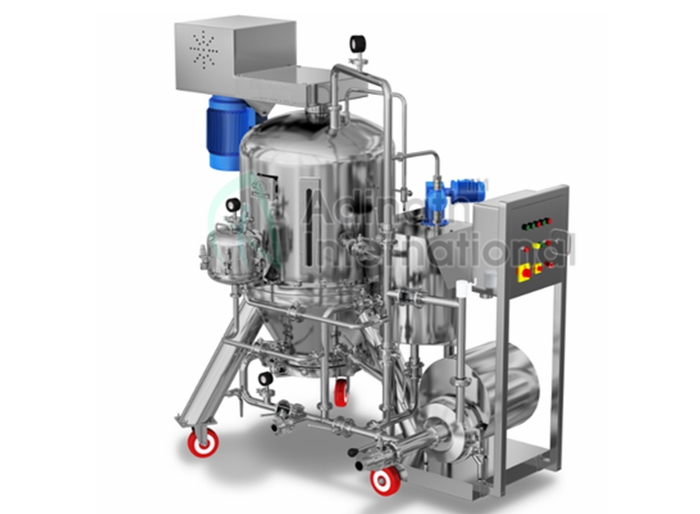

Sterile Manufacturing Vessel is made as per WHO & USFDA standards to manufacture sterile solutions. This is a completely closed vessel with agitator mounted on top dome. This vessel available with different accessories for different applications i.e. standard stirrer/magnetic stirrer as required by the customers.

Salient Features of Sterile Manufacturing Vessel

  • Design as per ASME code.

  • No stagnant point, internal surfaces are 0.28 Ra finish.

  • All contact parts/surfaces made out of SS 316/SS 316L quality.

  • Electro polished from inside.

  • The vessel will be jacketed, insulated and cladded by SS 304 sheet.

  • Spray ball for CIP/SIP system.

  • Flush bottom valve.

  • Steam/Electrical heating.

  • If required, Load cell/capacitance type level indicator will be provided to measure the volume inside the tank.

Process Operation of Sterile Manufacturing Vessel

Jacketed Mixing Vessel (double jacketed vessel) including jacketed steam boiler is uses for mixing liquid and slightly solid materials. Jacketed Mixer assembly equipped with series of paddles types blades, pitched or flat blade of appropriate shape. In Mixer two consecutive blades move in opposite direction which creates laminar thinning of the material and facilitates uniform mixing. Paddle type blades mounted on scrapping arms and welded to hollow shaft have independent drive. Bottom support to the shaft called piyot provided for firmness of shaft during rotations. Paddles mounted on internal shaft creates relative movement of the material. For discharge of material different types of valves can be offered as per user requirements.

Technical Specification of Sterile Manufacturing Vessel

Description Specification
Capacity 5 Liters to 20000 Liters
Power Supply 0.5 H. P. to 75 H. P.
Power Voltage 440 volts, 3 phase, 50 hertz
Gearbox Helical type / similar
Stirrer Type Pitch Type Stirrer
Stirrer MOC Stainless Steel 304/316/316L
Stirrer RPM 150 RPM adjustable through VFD
Stirrer Mounting Orientation Top Mounted
No. of blades Two
Shaft Diameter Suitable Diameter

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
