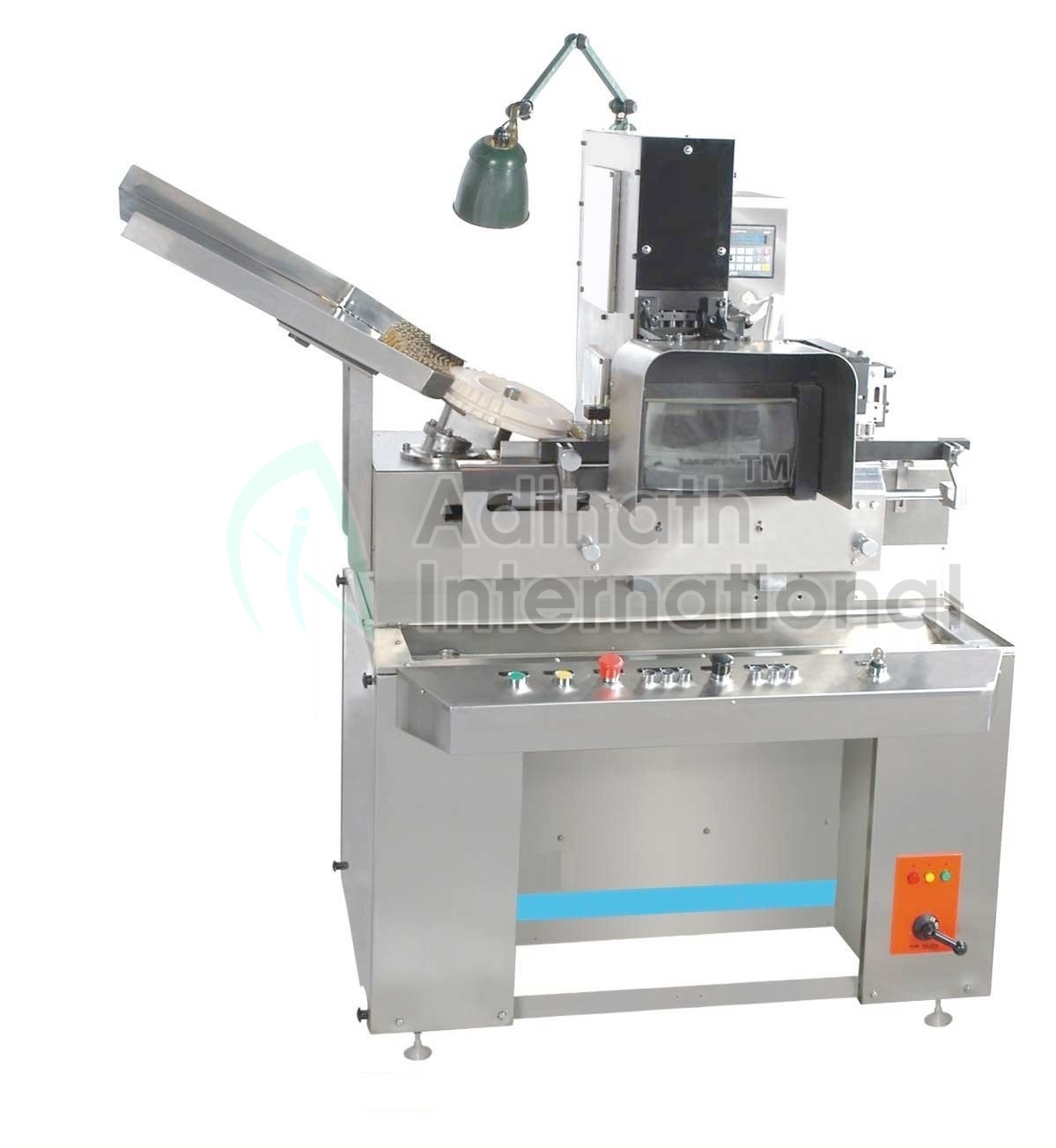

• Ampoule Inspection Machine

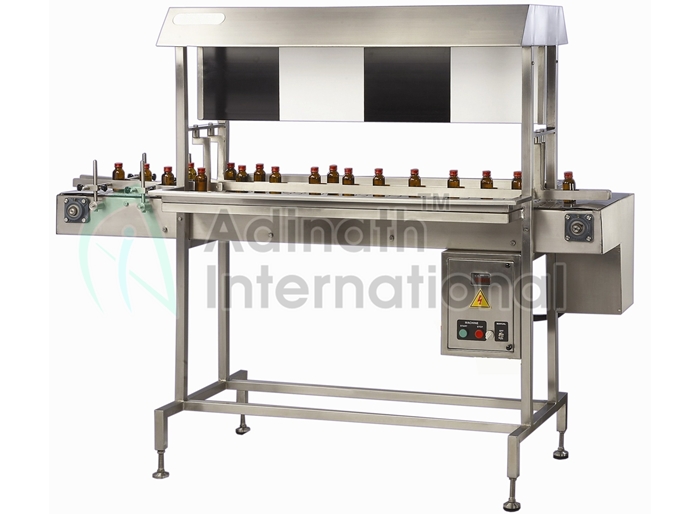

  • Automatic Ampoule Inspection Machine


Automatic Ampoule Inspection Machine is suitable for inspection of injectable glass ampoules. Ampoule Inspection Machine consist four tracks that are fabricated using nylon-6 rollers chain which are available with a spinning assembly that has A.C. Drive Rejection Units with 24V DC wiring. In addition, Variable AC Frequency Drive provided for the speed adjustment. Machine is having all contact parts made from stainless steel and approved engineering plastics as per cGMP requirements.

Salient Features

  • Suspended particle and fill volume check.

  • Each ampoule is checked twice.

  • Cost effective and space saving design.

  • Detection by polarized light.

  • Built-in validation parameter setting and ease of product changeover.

  • On line data logging.

Process Operation of Automatic Ampoule Inspection Machine

Ampoules are loaded on to an inspection table out of trays. The ampoules are manually pushed on to an inclined infeed conveyor belt of sufficiently large capacity. Ampoules are picked up by a starwheel and fed to a revolving inspection drum consisting of two spinning stations and two inspection stations. Two ampoules are inspected at a time at the inspection station 1. Its status is recorded. The same ampoules are again inspected at the next inspection station 2. The ampoules then exit the inspection drum and are picked up by a starwheel and transfered to a linear screw. A sorter automatically separates the good and bad ampoules into individual outfeed hoppers.

Technical Specification of Automatic Ampoule Inspection Machine

Model AVIM-300
Capacity 300 Ampoules/Minute
Electrical Specification
Line Voltage 415 V, 3 Phase, 50 Hz
Installed Power 3 H.P.
Input Specification
Diameter 9mm to 12mm
Height 40mm to 60mm

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
