Description

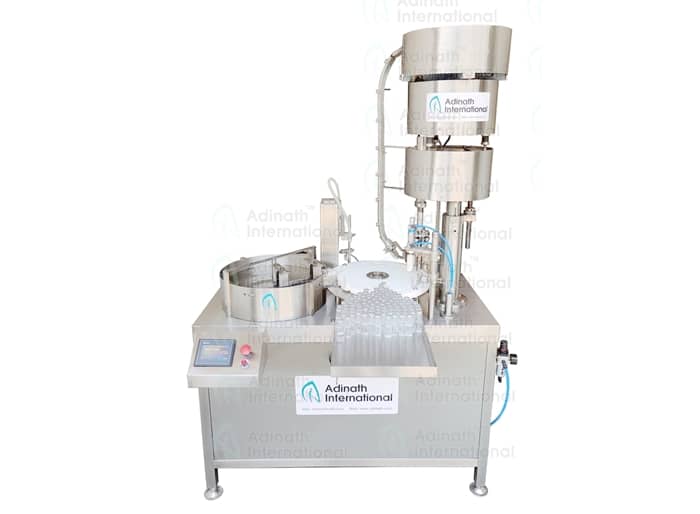

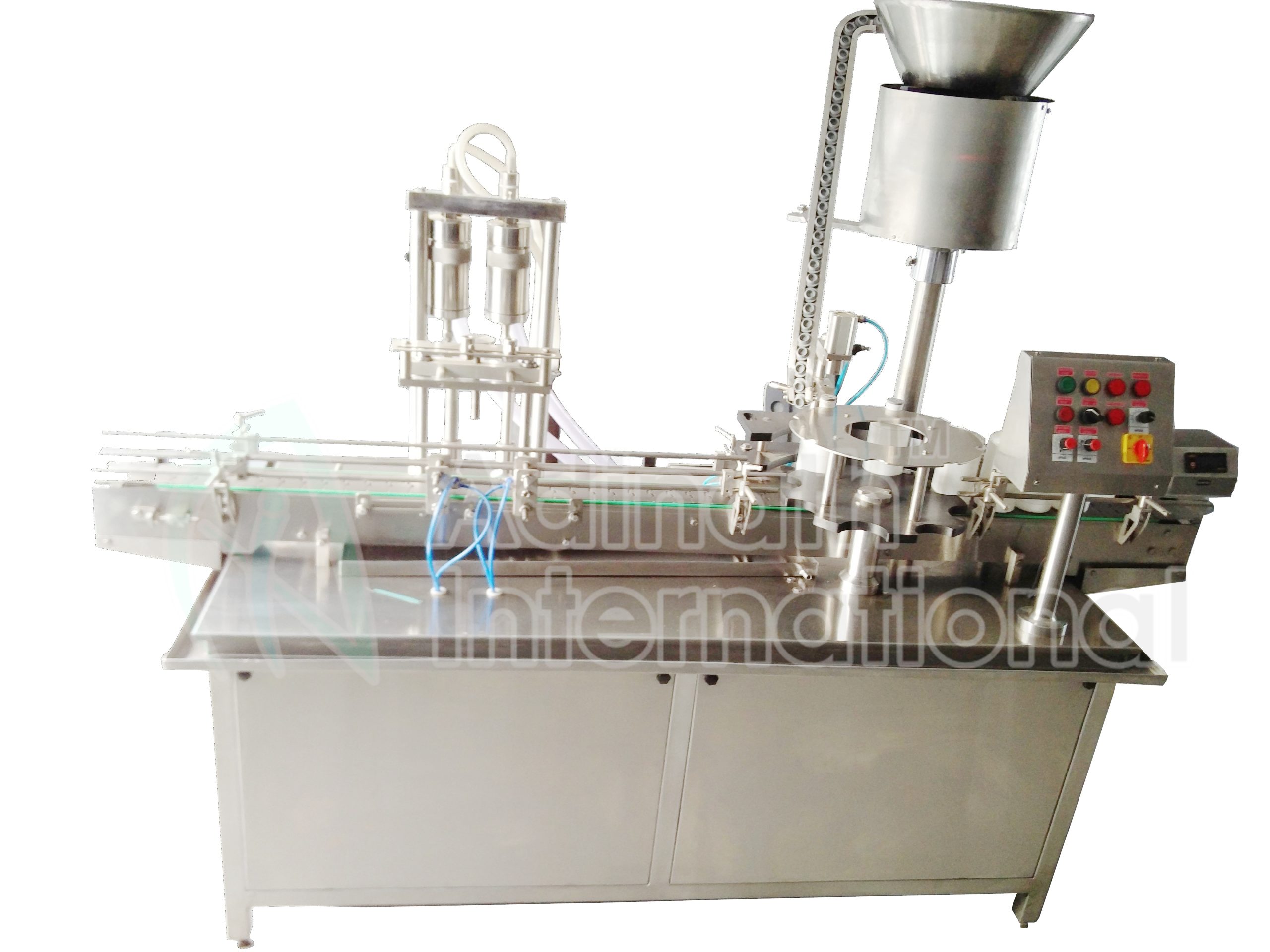

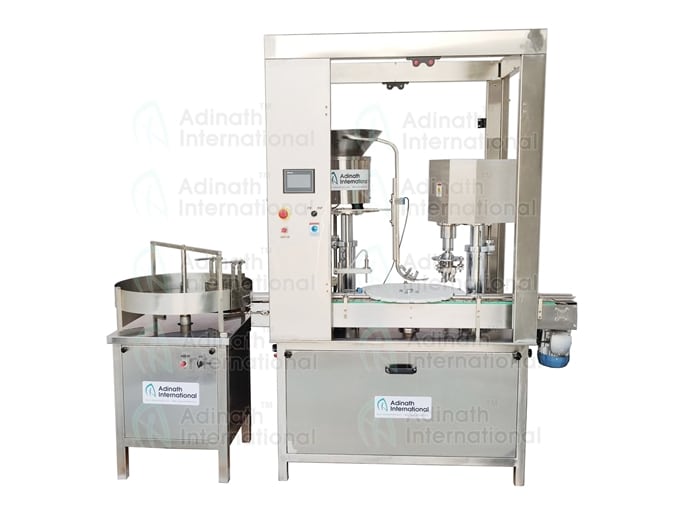

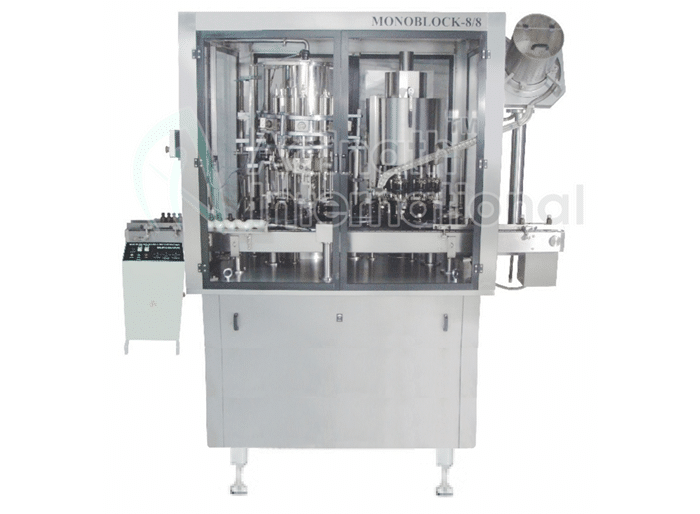

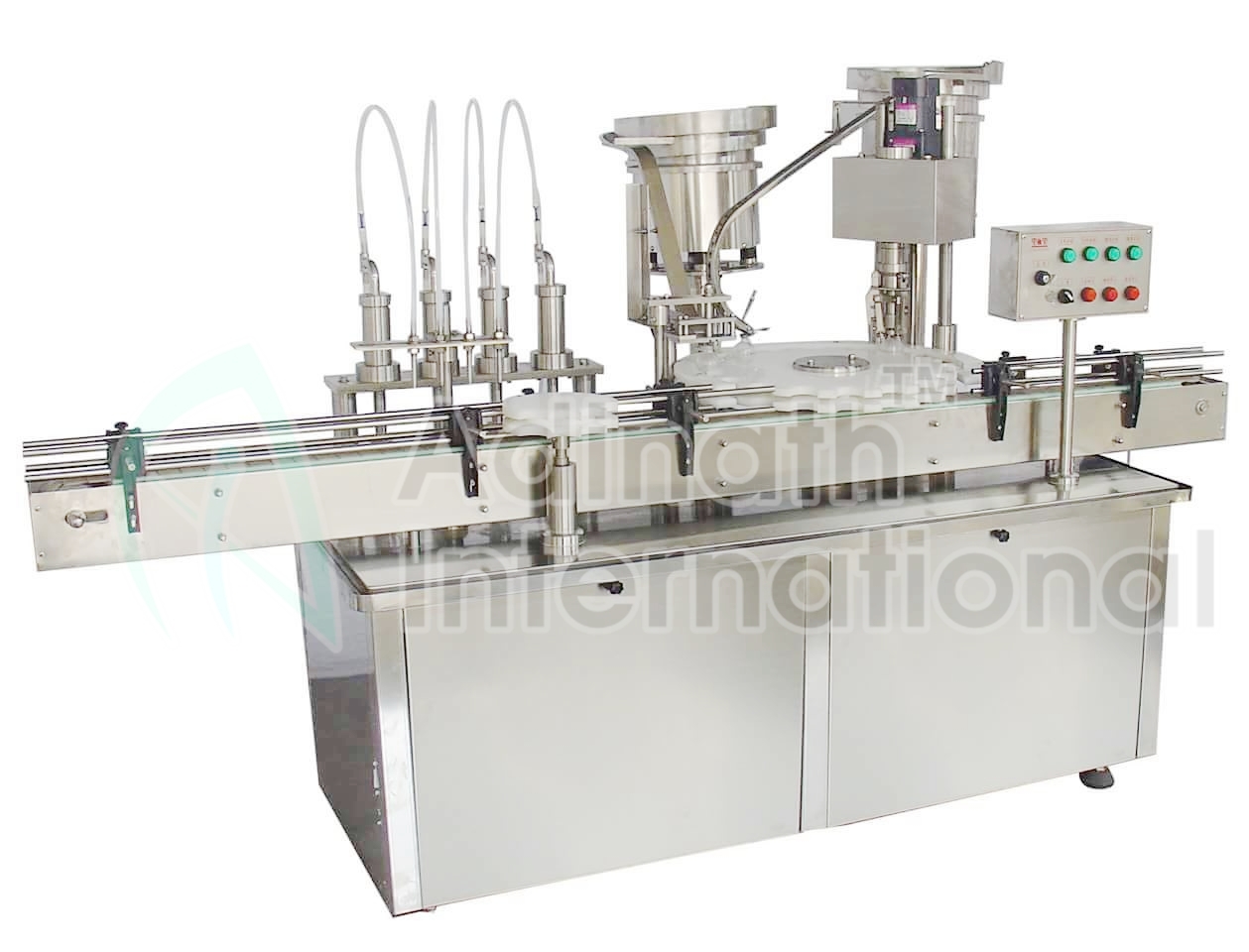

Automatic Monoblock Bottle Filling and Capping Machine or monoblock bottle filler capper is commonly usage form of filling machine for filling liquid in different packaging types. Our range of filling machine can fill aqueous solution, foaming liquid, semi viscous solution products. Bottle liquid filler can fill PET, plastic, glass, aluminium, stainless stel, copper and other containers. Bottles, jars, containers & other solid packing types can be filled with adinath bottle filling machines. The basic unit consists of base structure, stainless steel slat conveyor belt, piston pump and filling needles.

Salient Features of Monoblock Bottle Filling & Capping Machine

  • Compact GMP model.

  • “No Bottle – No Filling” system.

  • Single Operator for two operations.

  • All contact parts made of AISI SS 316 material with easy removal system for easy cleaning.

  • Machine construction in AISI SS 304 material.

  • Infeed turn table for automatic feeding of bottles.

  • Diving Nozzle for Foam free filling.

  • Very High Fill Accuracy.

  • Automatic In-feed and Exit of Bottles.

  • Minimum Change Over time.

  • Variable AC frequency drive for speed adjustment.

  • Digital bottle counter for counting production output.

Process Operation of Automatic Monoblock Bottle Filling & Capping Machine

In-feed turn table deliver bottles one by one to the moving SS conveyor. Bottles come into the filling point through SS conveyor. Filling Nozzle fill pre set volume of liquid into the bottle. The hexagonal bolt dosing block allows using of different filling volume easily with minimum use of time. The main drive consists of a gearbox driven by A.C motor & through controlled by an AC Frequency drive. The speed can be set in terms of bottles per minute. The conveyor drive consists of a hallow shaft

Technical Specification of Monoblock Bottle Filling & Capping Machine

Model AMBF 2 AMBF 4 AMBF 8
Production Output Up to 30 bottles/minute Up to 60 bottles/minute Up to 100 bottles/minute
No. of Filling Heads Two Four Eight
No. of Capping Heads Single Single Four
Bottle Diameter 25mm to 85mm* 25mm to 85mm* 25mm to 85mm*
Capping Type ROPP/ Screw ROPP/ Screw ROPP/ Screw
Cap Size 18mm to 55mm 18mm to 55mm 18mm to 55mm
Filling Range 15ml to 120ml or 30ml to 250ml* 15ml to 120ml or 30ml to 250ml* 15ml to 120ml or 30ml to 250ml*
Syringe Fill Range 15ml to 120ml,30ml to 250ml or 250ml to 500ml* 15ml to 120ml,30ml to 250ml or 250ml to 500ml* 15ml to 120ml,30ml to 250ml or 250ml to 500ml*
Accuracy +/- 1% Depending on Liquid with Single Dose +/- 1% Depending on Liquid with Single Dose +/- 1% Depending on Liquid with Single Dose
Electrical 440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz) 440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz) 440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz)
Power 2.5 H.P. 4 H.P. 5.5 H.P.
Conveyor Height 850 – 900 mm adjustable 850 – 900 mm adjustable 850 – 900 mm adjustable
Overall Dimension 2200 mm (L) X 950 mm (W) X 1550 mm (H) approx. 2600 mm (L) x 1250 mm (W) x 1550 mm(H) approx. 3500 mm (L) x 1250 mm (W) x 1550 mm(H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

FAQ of Automatic Monoblock Bottle Filling & Capping Machine

The machine can fill aqueous solutions, foaming liquids, and semi-viscous solutions.

Key features include a compact GMP model, “No Bottle – No Filling” system, single-operator capability for both filling and capping, all contact parts made of AISI SS 316 with easy removal for cleaning, machine construction in AISI SS 304, infeed turn table, diving nozzles for foam-free filling, very high fill accuracy, automatic in-feed and exit of bottles, minimum change-over time, variable AC frequency drive, and a digital bottle counter.

Bottles are delivered one by one from the in-feed turn table onto the moving stainless-steel conveyor. They reach the filling point where nozzles dispense a pre-set volume of liquid. The hexagonal bolt dosing block allows easy volume changes. The main drive uses a gearbox driven by an AC motor controlled by an AC frequency drive, with speed adjustable in bottles per minute.

Three models are offered:

  • AMBF 2: Up to 30 bottles/minute (2 filling heads, 1 capping head)
  • AMBF 4: Up to 60 bottles/minute (4 filling heads, 1 capping head)
  • AMBF 8: Up to 100 bottles/minute (8 filling heads, 4 capping heads)

Filling range is typically 15 ml to 120 ml or 30 ml to 250 ml (with syringe options extending to 250–500 ml depending on configuration). Accuracy is ±1%, depending on the liquid and single dose.

It handles bottles with diameters from 25 mm to 85 mm and caps from 18 mm to 55 mm. Capping types supported are ROPP and screw caps.

Electrical supply is 440 VAC 3-phase or 220 VAC single-phase (50 Hz). Power ratings are 2.5 HP (AMBF 2), 4 HP (AMBF 4), and 5.5 HP (AMBF 8). Conveyor height is adjustable between 850–900 mm. Approximate overall dimensions vary by model (e.g., AMBF 2: 2200 × 950 × 1550 mm).

Yes. All contact parts are AISI SS 316 with an easy-removal system for cleaning. The design ensures minimum change-over time when switching products or volumes.

It is ideal for pharmaceutical and related industries needing efficient liquid filling and capping. A single operator can manage both filling and capping operations thanks to the integrated monoblock design and automatic features.
