Description

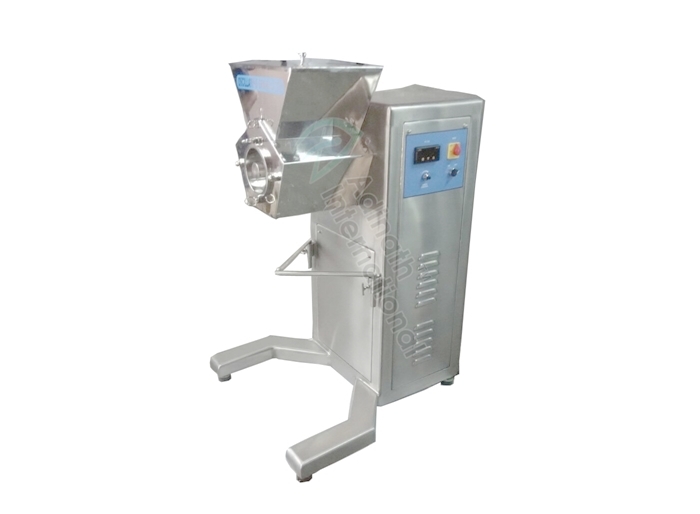

Oscillating Granulator uses for perforation of pellets from the dry or wet powder. Due to such application of machine it is also called as pharmaceutical pelletizer. Machine plays important part in the process of granulation in tablet making as quality of tablet is determined by the feature of the granules uses. Oscillating granulator can be uses for wet and dry aspect of the granulation process. Quality of granules are better compared to other processing machineries like multi mill, comminuting mill etc.

Salient Features of Oscillating Granulator

  • Compact GMP model.
  • Used in granulation in tablet making as quality of tablet is determined by the desirable quality of the granules used for its compression.
  • Machine can be uses for wet and dry aspect of the granulation process.
  • Quality & percentage of granules can be achieve better compared to other processing machineries like Multi Mill, Comminuting Mill etc.
  • Special oscillatory rotor action ensures minimum fines.
  • All contact parts are made of SS 316.
  • Sturdy and durable design with easy to operate / clean / maintain mechanism.
  • Noise level minimum.
  • Continuous oscillating stirrers drive.
  • Simple screen holding and tensioning device.
  • Screen – available in different size as per requirements.
  • Variable AC Frequency Drive can be offered on demand.
  • Castors provided for mobility. (optionally)

Technical Specification of Oscillating Granulator

Model OG 2
No. Stirrer Single
Hopper Capacity 35 Liters Gross Capacity
Power Supply 2 H.P.
Power Voltage 440 V., 3 Phase,50 Cycles, A.C.
Output 20 to 100 Kgs/ hour

(Output depends upon size of granules and material characteristics)

Overall Dimensions 460mm (L) x 770mm (W) x 1230mm (H) approx.
Case Dimensions 660mm (L) x 920mm (W) x 1650mm (H) approx.
Net Weight 250 kgs. approx.
Gross Weight 370 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
