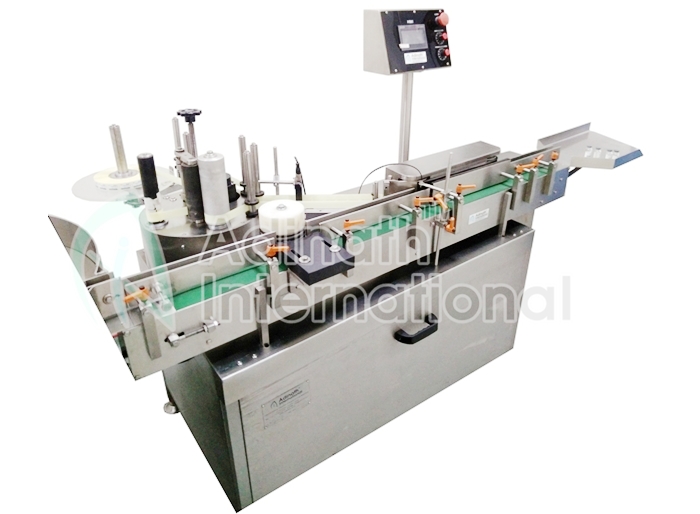

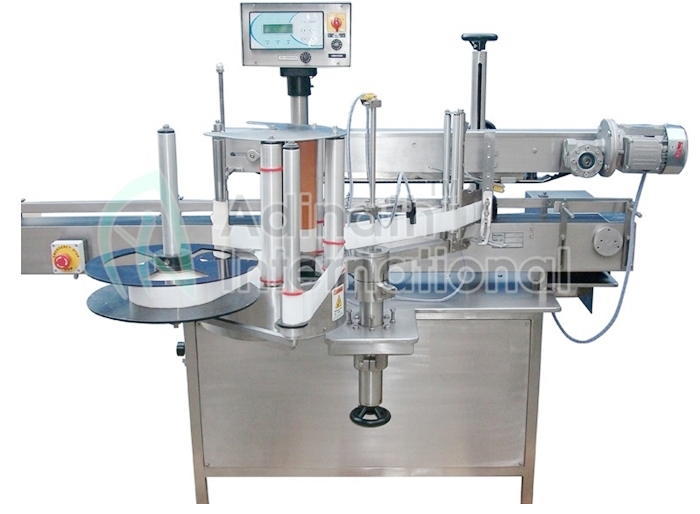

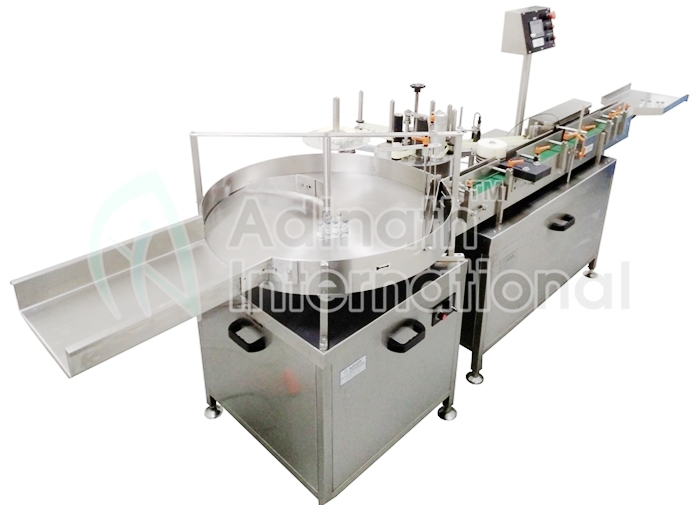

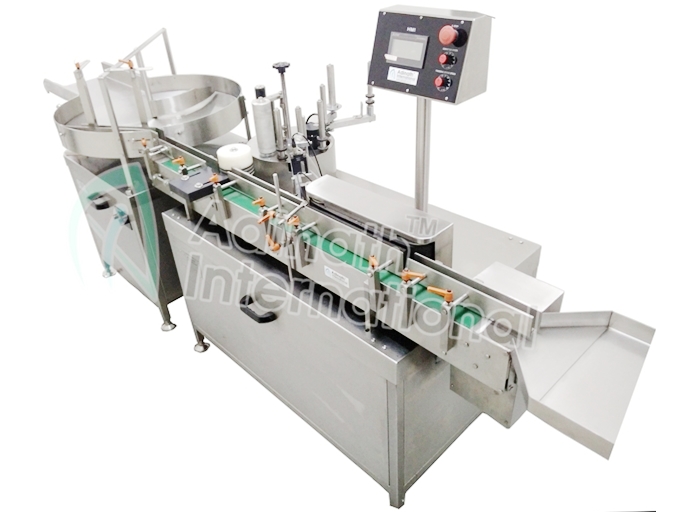

Bottle Sticker Labeling Machine Description
Bottle Sticker Labeling Machine or bottle sticker labeler can label bottles with utmost accuracy and precision. By using our pharma bottle labeling machine one can label up to 250 botles per minute. Bottle Labeler can be attached to any bottle liquid or powder filling line for online operations. Manufactured in high grade stainless steel materials machine complies all regulatory requirements. HMI based touch screen control panel equipped with servo motor control mechanism for accurate label placement. There is option of installing missing label sensor for detecting any bottle without label. On other side we also offer automatic camera based inspection and rejection system for printing mistakes and barcodes (optional). We provide lifetime support for spare parts for our range of supplied machines. We can offer you components as per your desired brand preferences. We provide validation protocol documents for usage in pharmaceuticals.
Features of Bottle Sticker Labeling Machine
- Elegant cGMP model.
- Apt for various types of labels.
- PLC HMI based Touch Screen control panel.
- Variable AC Frequency Drive for speed adjustment.
- Optional Printing Device attachment facility provided.
- Option of adding Missing Label Sensor.
- Option of high end feature such as Camera based Vision System to check printing and barcode.
- No Label Data Input/retrievals require for any Label Size.
- Different label size working without extra change parts set.
- Speed variation pot inbuilt in control system.
- Synchronized speed of Label Dispensing, Product Feeding and Pressing Device.
- Easy to clean and less maintenance system.
- User Friendly Label Placing Adjustments.
- Online Inkjet and Contact Coding System can be attached.
- Suitable for Partial, Full Wrap Around and Overlap Labeling.
- Machine cover made from high quality Stainless Steel 304.
Working Principle of Bottle Sticker Labeling Machine
Bottle labeling machines uses for sticking labels on filled and sealed glass Bottles. Best part of machine is that it can function independently as well as part of a continuous filling line. Machine not only increases production output but also reduces rejections and errors. Equipment designed by keeping optimum safety aspect in mind. Label roll to be fitted onto label roll holder of the machine and waste paper to be fixed onto waste paper holder. Label sensor sense container and dispense one label at a time. During movement of container at conveyor, container picks up one label at a time. Further there is pressing assembly fitted which have spounge belt. Container rotates and move onto conveyor. During this movement label get wrapped automatically. Duly labeled containers get collected onto collection tray for further operations.
Technical Specification of Bottle Labeling Machine
Model | AVSL 80 | AVSL 150 | AVSL 250 |
Vial Sizes | 2ml to 250ml | 2ml to 250ml | 2ml to 250ml |
Speed | Up to 60 Labels per minute depending on container and label characteristics | Up to 120 Labels per minute depending on container and label characteristics | Up to 200 Labels per minute depending on container and label characteristics |
Label Height | 8mm to 90mm | 8mm to 90mm | 8mm to 90mm |
Label Length | 12mm min. | 12mm min. | 12mm min. |
Label Roll Dia. | 400mm | 400mm | 400mm |
Label Roll Core Dia. | 75 / 76mm | 75 / 76mm | 75 / 76mm |
Gap Between two Labels | 3mm approx. | 3mm approx. | 3mm approx. |
Power Load | 1 H. P. | 1.5 H. P. | 3 H. P. |
Power Voltage | 220 VAC Single Phase Power Supply (50/60 Hz) | 220 VAC Single Phase Power Supply (50/60 Hz) | 220 VAC Single Phase Power Supply (50/60 Hz) |
Product Feeding Belt height | 850mm to 950mm adjustable | 850mm to 950mm adjustable | 850mm to 950mm adjustable |
Machine footprint | 1500mm(L) X 1200mm(W) X 1100mm (H) approx. | 2000mm(L) X 1350mm(W) X 1100mm (H) approx. | 2500mm(L) X 1350mm(W) X 1100mm (H) approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
