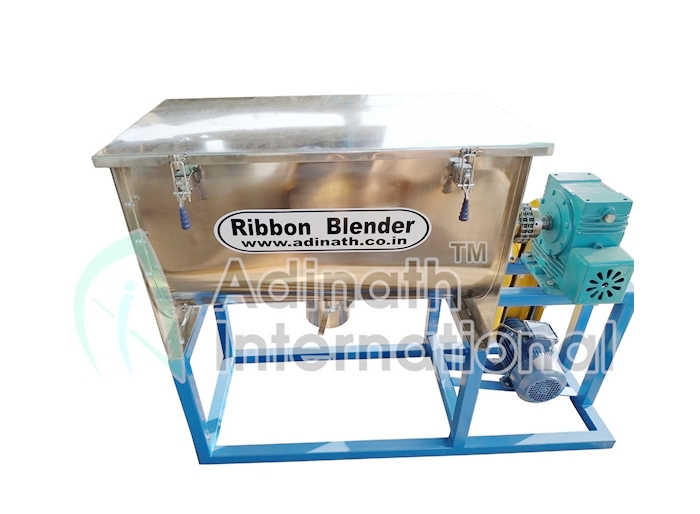

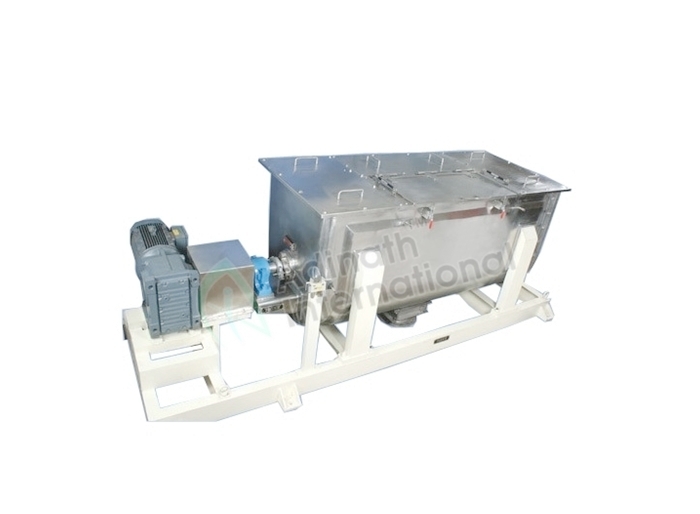

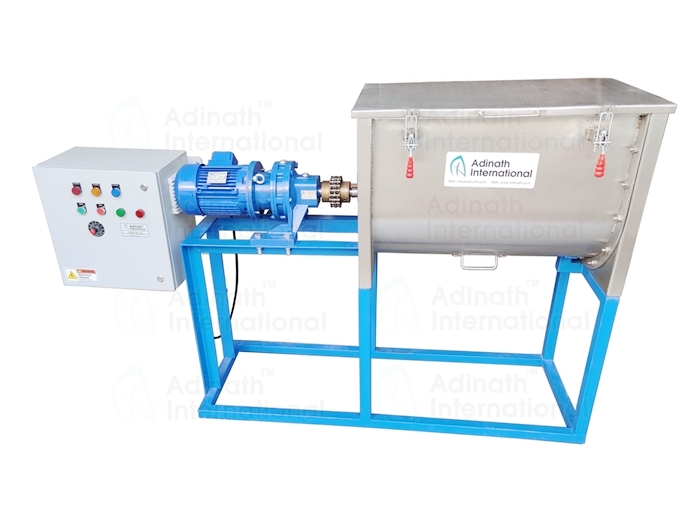

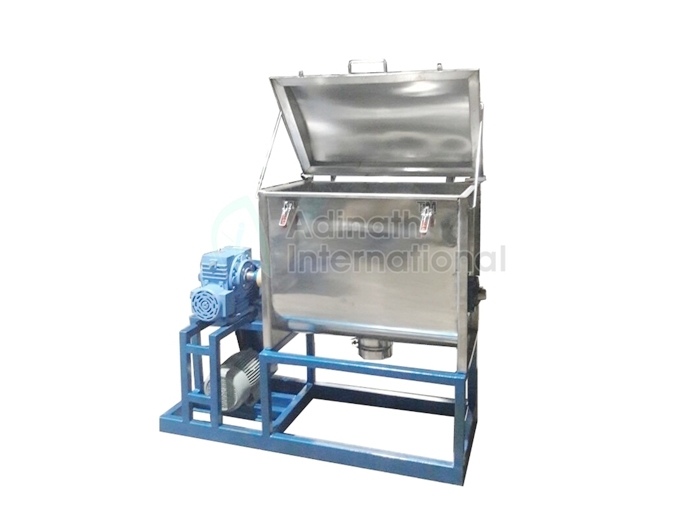

• Paddle Type Mixer


Paddle type Mixer or paddle blender ensure mixing of powder with liquid substances homogeneously. Also known as Mass Mixer Machine, it is widely uses in mixing pharmaceutical tablet granulation powder. Apart from it also uses for food ingredients mixing, chemical powder mixing and cosmetic paste mixing operations. Machine having one central shaft on which paddle type agitators mounted through which mixing operation performed. Instrument play important role in bulk solid dry mixing operations. Machine having two variants which includes single shaft paddle mixer and double shaft paddle mixer. Suppose if you are looking for mixer that can use for mixing dry and wet materials, then paddle shaft agitator is best choice to go for. Agitator uses for blending liquids and sludges with dry solids. As it has single shaft paddle mixer, it is ideal for those looking for small quantity mixing. Paddle mixers can also be equipped with additional equipment such as liquid spray device, heating jacket and cooling jacket.

Working Principle of Paddle type Mixer

Paddle type mixers are best for huge capacity mixing at the same time they are convective mixers. Mixers equipped with two different agitators that are mounted with paddles to actively displace the powder. To obtain efficient mixing, it’s necessary for the shaft to reach a certain rotation speed. Once this speed is obtained the paddles lift solids and create product fluidization in the mixer’s central area. Paddle mixers contain profiled paddles that have a defined angle to facilitate both axial and radial mixing for the optimization of mixing time.

Applications of Paddle Mixer

Paddle Shaft Mixers uses in wide range of applications such as food products, cosmetic ingredients, pharmaceutical exciepents. We are giving here below detail industry wise usage of ribbon blenders:

Pharmaceuticals Granulation: Bulk Drugs, API and Nutraceuticals

Cosmetics Products: Talcum Powder, Eye shadow, Face powders, Laundry detergents

Chemicals Materials: Dyes, Intermediates, Pigments, Pesticides, Fine Chemicals, Rubber Chemicals, Abrasives, Engineered plastic resins, Epoxy resins, Carbon black, Fire retardants, Polyethylene, Chemicals, Gypsum, PVC compounding, Cleaning compounds, Plastic powders

Food Ingredients: Infant formula, Cocoa mix, Instant salad dressing, Cake mixes, Seasonings, Flavorings, Gelatin,    Milk Powder, Pet foods, Bakery premixes, Cake mixes, Instant breakfast cereals, Spice blends, Dietary supplements, Instant drink blends, Spices, Dried food products

Agriculture Products: Insecticides, Pesticides, Fertilizers, Pesticides and herbicides, Bird seeds

Miscellaneous Applications: Handling large Dry and wet powder volume, Crystalline products, Low-viscosity paste and liquid in chemicals

Technical Specification of Paddle type Mixer

Model Gross Volume approx. Working Volume approx. Power
RM-10 10 Liters 5 Liters 0.5 H.P.
RM-50 50 Liters 20 Liters 1 H.P.
RM-75 75 Liters 50 Liters 1 H.P.
RM-150 150 Liters 100 Liters 2 H.P.
RM-250 250 Liters 150 Liters 3 H.P.
RM-450 450 Liters 300 Liters 5 H.P.
RM-600 600 Liters 450 Liters 7.5 H.P.
RM-1100 1100 Liters 750 Liters 10 H.P.
RM-1500 1500 Liters 1000 Liters 12.5 H.P.
RM-2000 2000 Liters 1250 Liters 15 H.P.
RM-3000 3000 Liters 1875 Liters 20 H.P.
RM-5000 5000 Liters 3000 Liters 25 H.P.
RM-10000 10000 Liters 6000 Liters 40 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
