Injectable Filling Machines: Process and Validation
Are you aware that the global injectable drug delivery market is predicted to reach a staggering $101.2 billion by 2033? The demand for injectable medicines is rapidly growing due to their precise and fast-acting delivery mechanism. However, the process of filling these injectables is a complex and challenging task that requires advanced technology and expertise.
Before we dive into the process of injectable filling machines and their validation, let’s understand what Injectable filling machines are.

Understanding Injectable Filling Machine & How It Works
An Injectable Filling Machine is a specialised and sophisticated piece of equipment that is essential in the production of injectable medicines. These machines come in various types, each designed to suit specific requirements. Generally, it is used in the pharmaceutical industry to fill sterile medications, such as vaccines, antibiotics, and insulin, into vials or syringes. These machines are designed to ensure accurate dosing and maintain a sterile environment during the filling process.
The process of filling injectables is mainly automated and requires minimal human intervention to reduce the risk of contamination. The machines come equipped with sensors that detect any abnormalities during the process, such as filling level, pressure, and temperature. These sensors ensure that the process is carried out correctly and the product is of the desired quality.

The filling machines come in different types, common ones are:
Piston filling machines are the most commonly used filling machines in the pharmaceutical industry. They use a piston and cylinder system to fill vials or syringes with the medication. The piston is driven by a motor or compressed air, and it moves back and forth within the cylinder, drawing in the medication and then dispensing it into the vial or syringe.
Peristaltic filling machines use a series of rollers to squeeze a flexible tube, creating a vacuum that draws in the medication. As the rollers move along the tube, they push the medication out of the tube and into the vial or syringe. Peristaltic filling machines are ideal for products that are highly viscous or require careful handling, as they allow for precise control over the filling process.
Volumetric filling machines are used to dispense a precise volume of the medication into the vial or syringe. These machines use a series of valves, pumps, and flow meters to control the amount of medication dispensed. Volumetric filling machines are ideal for products that require precise dosing, such as insulin.
There are also specialized filling machines designed for the production of sterile powders, while others are used for handling large volume parenterals.
The selection of these machines depends on the type of product being filled, the container used, and the required filling speed.
For instance, the Bosch FXS Combi filling and closing machine designed to handle up to 600 containers per minute, and the Vanrx SA25 Aseptic Filling Workcell machine designed using robotics and machine vision technology that can handle up to 100 vials of different sizes in a minute.
These are just a few examples. Each machine is designed to meet the unique needs of different products and production processes.
Understanding Injectable Liquid Filling Machine & How It Works
Liquid filling machines are the most common type of filling machines used in the production of injectables. They are used to fill liquid medication, such as vaccines, insulin, and antibiotics. The machine’s design and functionality depend on the type of liquid being filled and the container used.
This machine consists of a container, a filling nozzle, and a piston pump that fills the container with the liquid product. The nozzle is positioned inside the container, and the piston pump drives the liquid into the container.
The machine is designed to fill the product accurately, with minimal wastage. The filling nozzle is designed to prevent any spillage of the product, and the piston pump ensures that the filling is done at a constant speed.

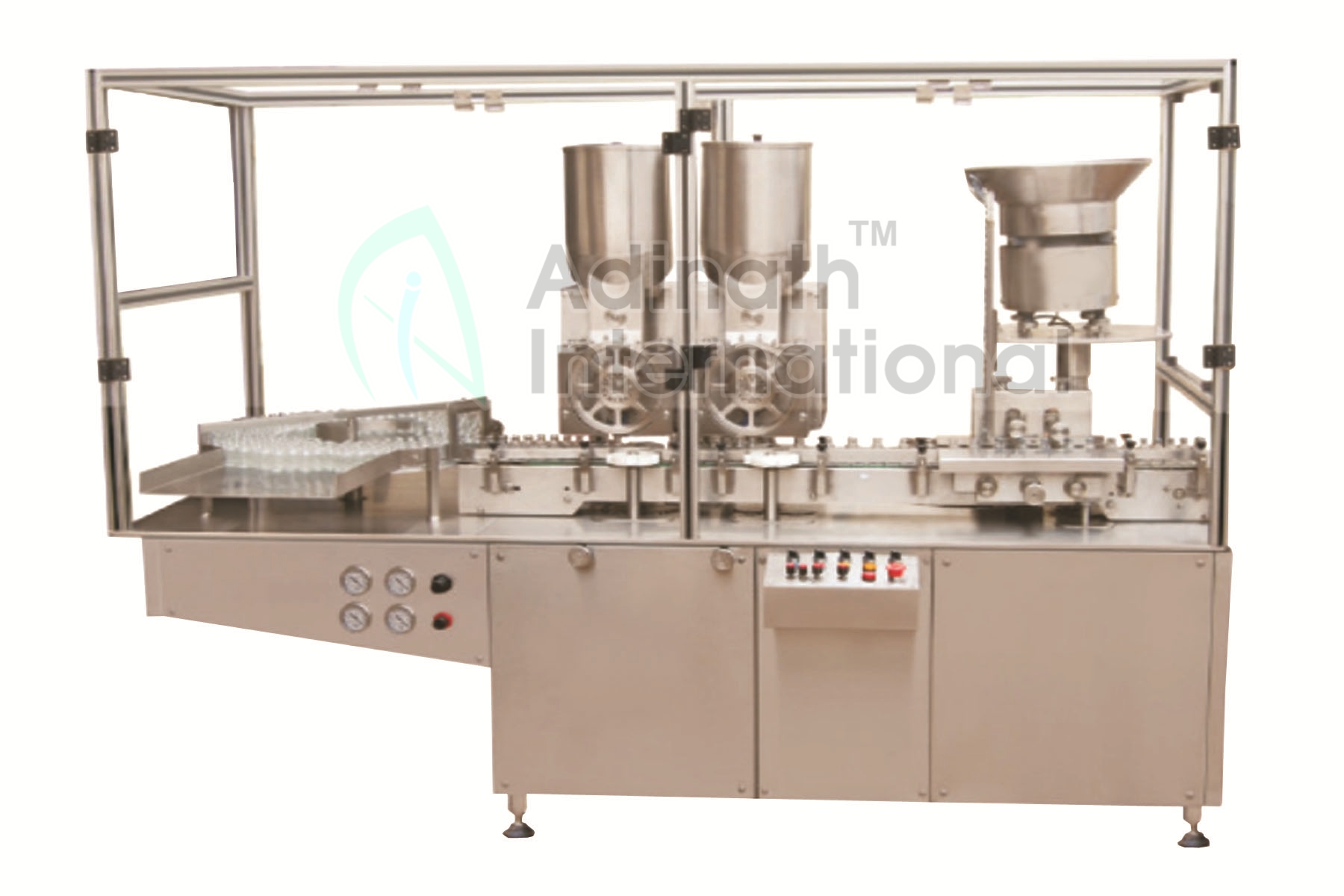

Understanding Injectable Dry Powder Filling Machine & How It Works
Dry powder filling machines are used in the production of dry powder medication, such as inhalers, antibiotics, and insulin. These machines have a different design than liquid filling machines, as they require a specialized filling mechanism to ensure the accurate dosing of the product.
This machine consists of a container, a dosing wheel, and a powder flow control system. The dosing wheel is a rotating disc that has pockets to hold the measured amount of dry powder. The powder flow control system is used to ensure that the correct amount of powder is filled into the container.
The process of filling dry powder medication is more complex than liquid filling, as the dry powder is more sensitive to changes in temperature and humidity. The machines used for dry powder filling are designed to work in a controlled environment, where the temperature and humidity are carefully regulated to avoid any adverse effects on the product.
Understanding Injectable Filling Closing Machines & How It Works
Once the product is filled into the container, it is then passed to the closing machine, which seals the container. The closing machine ensures that the container is sealed correctly to prevent any contamination and ensure the product’s shelf life.
The closing machines come in different types, such as:
Crimping machines are commonly used in the production of aluminum-sealed vials. These machines use a set of jaws to crimp the aluminum cap onto the vial. The crimping process creates a secure seal that is essential for maintaining the product’s sterility.
Screw capping machines, on the other hand, are commonly used for plastic or glass vials with threaded caps. These machines use a set of wheels or chucks to twist the cap onto the vial. Screw capping machines are preferred for products that require easy opening, such as oral medications.
Snap capping machines are typically used for plastic vials or syringes that require a snap-on cap. These machines use a series of rollers or belts to press the cap onto the vial or syringe.
There are also specialized closing machines that can be used for specific applications. For example, some closing machines use induction sealing technology to create a hermetic seal on the vial or syringe. Other machines may be used for specialized closure systems, such as elastomeric stoppers or child-resistant caps.
The selection of the closing machine depends on the type of container used and the required sealing method. Its operation involves the use of torque, which is the rotational force applied to the cap to ensure that it is sealed correctly. The machines are designed to apply the required torque accurately to ensure that the container is sealed correctly.
The Importance of Validation in Injectable Filling Machines
Validation is a critical process in the production of injectables, as it ensures that the product is of the desired quality and meets the required standards. The validation process involves testing the filling machine’s performance and ensuring that it meets the specified criteria.
The validation process is essential in ensuring that the product’s quality is not compromised during the filling process. The process involves testing the machine’s accuracy, precision, and reproducibility to ensure that the product is consistently dosed and of the desired quality.

The Validation Process of Injectable Filling Machines
The validation process of injectable filling machines involves several stages, starting with the preparation of the validation protocol to the final report.
The validation process typically consists of three stages:
The first stage: The Installation Qualification (IQ) stage involves verifying that the filling machine has been installed correctly and meets the manufacturer’s specifications. This includes a review of the machine’s design, construction, and installation, as well as a review of the documentation provided by the manufacturer.
The second stage: The Operational Qualification (OQ) stage involves testing the filling machine to ensure that it operates correctly under normal production conditions. During this stage, the machine is tested to determine whether it can consistently produce the desired quality of the product. This stage may also involve testing the machine’s ability to handle different product formulations or container sizes.
The final stage: The Performance Qualification (PQ) stage involves testing the filling machine under actual production conditions to ensure that it can consistently produce the desired quality of the product. During this stage, the machine is tested with actual product formulations and container sizes to ensure that it can consistently produce the desired quality of the product. It involves the collection of data and documentation to verify that the filling machine is operating within the required parameters and meets the necessary quality standards.
Final Thoughts
The use of injectable medicines has become more prevalent in the The pharmaceutical industry due to their effectiveness and convenience.
As we look to the future, the use of advanced technology is critical to ensuring that the product is of the desired quality and meets the required standards. Investing in these machines will play a vital role in meeting the growing demand for high-quality injectable medicines. Patients deserve the highest quality medicines possible and with continuous Improvements in these machines, health outcomes for patients worldwide can only improve.
