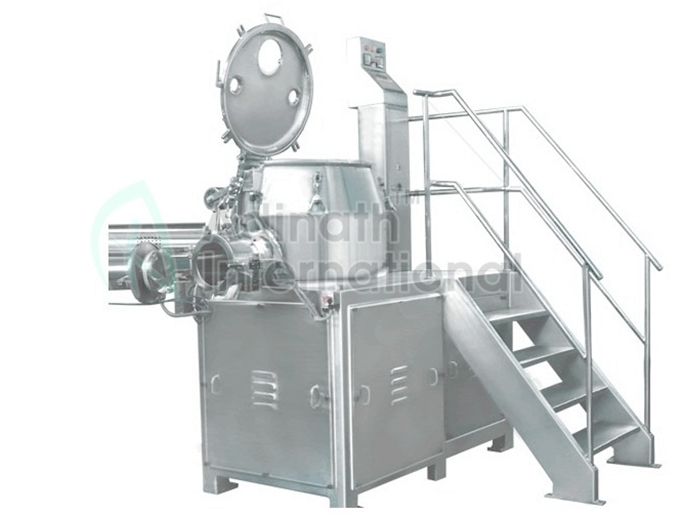

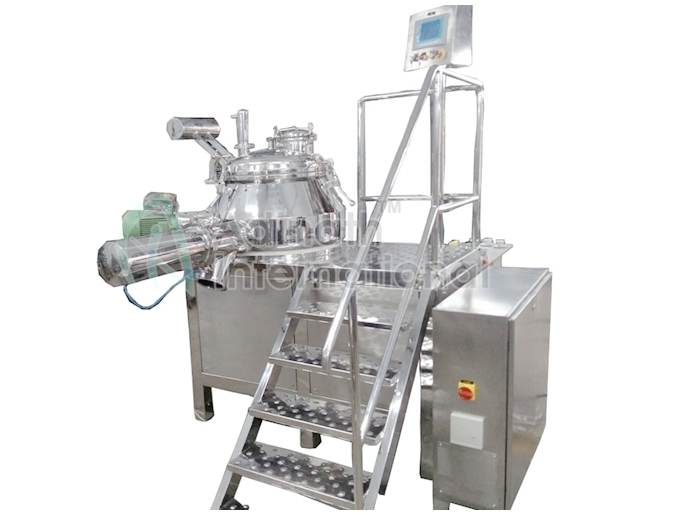

• Rapid Mixer Granulator

Description

Rapid Mixer Granulator designed for mixing powder components and forming granules out of them. RMG Machine equipped with two different type of blenders called Impeller and Chopper. Impeller is bigger size blender perform slow speed mixing whereas Chopper is smaller blade perform fast speed mixing. Chopper uses for blending and granules preparation process. Rapid Mixer Granulator designed to provide superior mixing and reliable granules at reduced production costs with increased output. Improved mixing and closed granule size control resulting higher tableting speeds, better quality and fewer rejections.

RMG Machine form granules by tumbling and whirling motion of particulate. High speed rotation of chopper provide edge while adding mixing ingredients. Machine granulate powder by applying shearing force hence it is also called as high shear mixer. Adinath International is one of the leading rapid mixer granulator manufacturers produce laboratory rapid mixer granulator 5 liters to production scale rapid mixer granulator 400 liters.

Rapid Mixer Granulator also known as RMG Machine, High Shear Mixer Granulator, Rapid Mixer Granulator Machine, High Shear Mixer Granulators, Dry Powder mixer granulator, Wet Granulator, Pharma Saizoner, High Shear Granulator, High shear granulation machine,  Granulator, Wet Mixing, Granulation Machine.

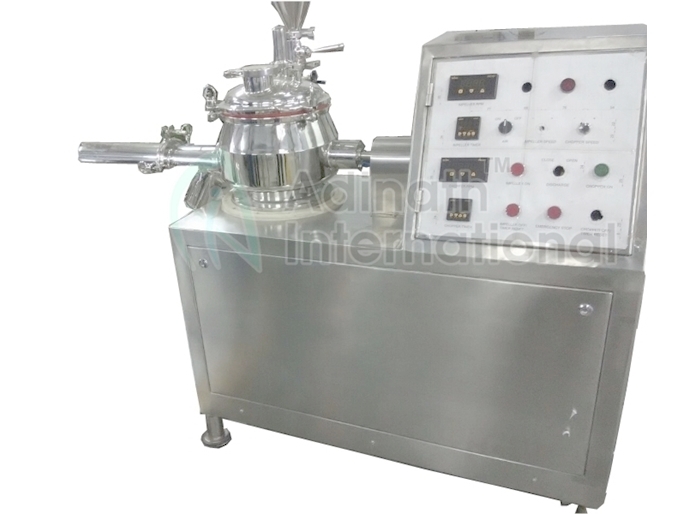

Types of Rapid Mixer Granulator

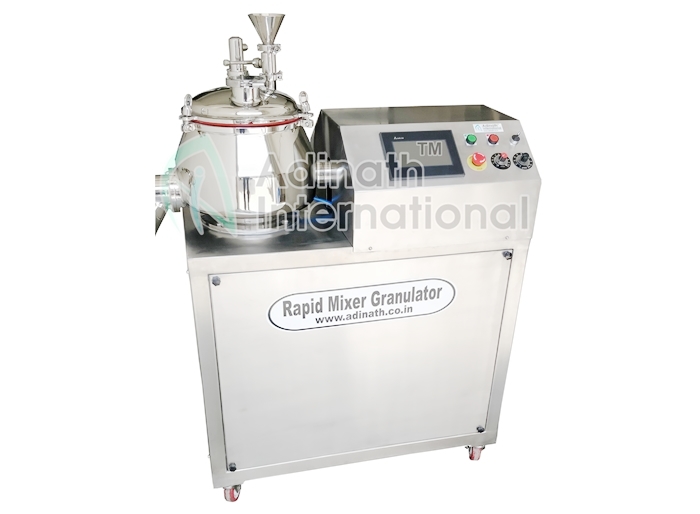

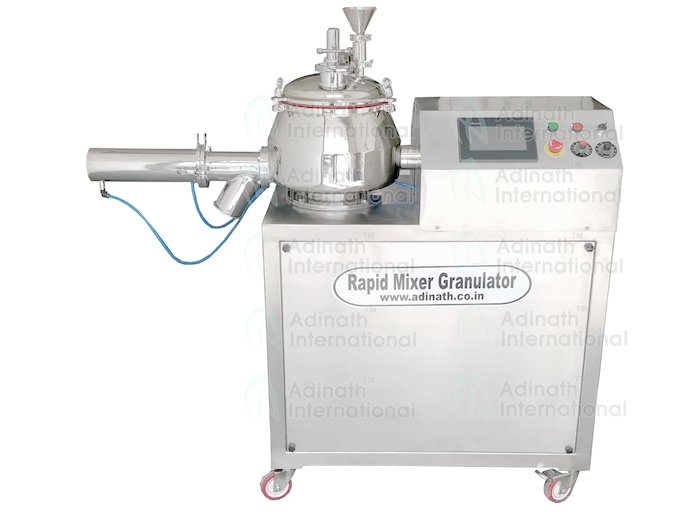

  1. Laboratory Rapid Mixer Granulator
  2. Rapid Mixer Granulator Lab Model
  3. Rapid Mixer Granulator, 10 Liters
  4. Rapid Mixer Granulator, 60 Liters
  5. Rapid Mixer Granulator, 120 Liters

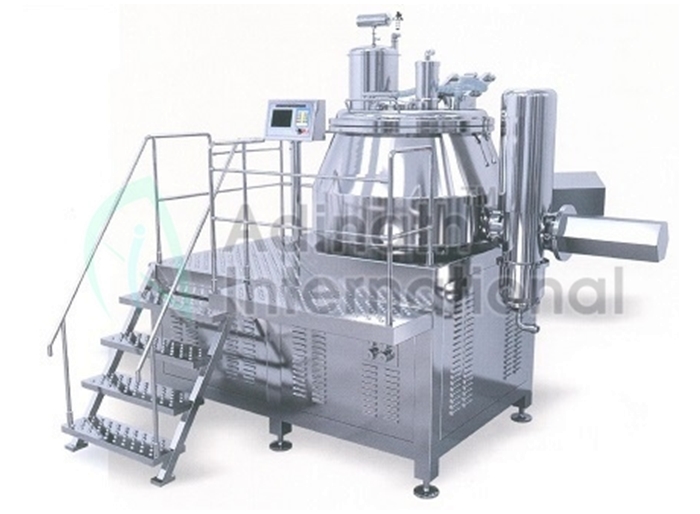

  6. High Production Rapid Mixer Granulator, 400 Liters
  7. Online Rapid Mixer Granulator with Co-mill

Salient Features of Rapid Mixer Granulator

  • Complete GMP model.

  • All contact parts made from Stainless Steel 316 with Non contact parts made from Stainless Steel 304.

  • MS structure is fully covered with Stainless Steel 304 covers/claddings.

  • All contact parts are mirror polished to 220 Grit and external surfaces to matt finish of 180 Grit.

  • Homogeneous binder distribution.

  • Short batch time and reduce cleaning time.

  • Maximize CIP effectiveness.

  • Air purge sealing system for main stirrer shaft and granulator shaft.

  • All internal contact parts are polished to the mirror finish.

  • A high-speed granulator is inserted horizontally through wall of bowl to assist blending of powder and to break the product to the granules of required size.

  • The seal housing and drive shaft may be flushed with cleaning water, which is then drained away from the machine through built in drain tubes.

  • Granulator motor is provided with a removable stainless steel shroud which covers the motor and simplify cleaning.

  • All moving parts of the machine are totally enclosed to eliminate accident.

  • The machine can not be started unless and until the mixer cover is properly closed.

  • Flush wall type discharge valve eliminates pockets at the port of discharge valve

Working Priciple of Rapid Mixer Granulator

Rapid Mixer Granulator working principles are based on two decisive factors essential for the intimate mixing system:

  • Spinning close to bottom of mixing bowl.
  • The impeller sets the entire mixture in whirling rising

Tumbling motion ensuring a quick & even distribution of all dry components. This leads to an even distribution of all dry components & an even wetting of every granule. The large lumps occurred during wet mixing are broken up, by the strategically acted chopping tool rotating at 1440/2880 RPM.

The mixture can be discharged with the impeller running through outlet located on the side of the mixing bowl flush to the bottom. Easy accessibility for cleaning is guaranteed by the low profile. The mixing tool is easily removed from the drive shaft providing an unobstructed mixing area which may be cleaned very easily.

Impeller and Chopper are primarily perform wet granulation in rapid mixer granulator. Below is the details of Impeller and Chopper.

Impeller

The stainless steel bowl has a dome shape and has fixed impellers at the bottom. Its blade count is two full length and two half length. These impellers are made with small blades that lift material and full-length blades that push material to ensure proper mixing. The wet substance is broken up into tiny pieces and grains by these impellers.

Chopper

These are the specially made blades that are situated at the dome’s base. Its high-speed rotation provides simple and consistent mixing operations. The chopper’s speed determines the size of the granules by chopping the wet lump material into minute pieces that are evenly mixed by the impellers. High impeller speed has no discernible influence on granule size due to the chopper.

Design & Construction of Rapid Mixer Granulator

Mixing Bowl

Mixing bowl is also known as blending bowl. With shape of arch it formulate free particles in whirling movement through assistance of impeller. Bowl is made from stainless steel 316 materials in moulded shape and welding less construction. Inner surface of bowl is smooth funnel shape without any dead corners.

Impeller

Impeller is designed in Z shape design for homogeneous blending operations. It perform multi dimensions movement for granulating the powder mass. Impeller is having two half filled and two filled edges. Clearance between impeller and shell is minimum as 0.5mm to 1.5mm, hence no chance to dead leg of powder in bowl. This way small particulate is also cleared on divider of bowl hence enhance efficiency and decrease energy load.

Chopper

Chopper is small blender with unique shape blades which rotate in high speed for granulation process. It break down larger molecules and turn them into granules. Generally chopper functioning start after adding binding agent when larger molecules formation done. With higher revolution speed of 500 to 3000 RPM chopper perform quick and uniform granulation process.

Discharge Cylinder

Pneumatic cylinder operated discharge mechanism uses in granulator. It has 180 degree direction pipe with 45 degree bend to discharge material beneath. Forward and backward movement cylinder work to discharge happens. When cylinder preform in backward direction then hole in 45 degree pipe become available to get material out. Impeller is turned to be during discharge process in order to accommodate material at discharge point.

Control Panel

Control Panel is made from stainless steel 304 materials with separate stand for it. There are two control panel on machine. One is main control panel which is mounted at bottom side door and another is operating control panel which is mounted at height of 800mm to 1000mm working height from the floor. Display system of control panel having phase indicating lamps, start – stop buttons, emergency stop switch. Speed ports provided if variable frequency drive for impeller and chopper opted by the user. There is option of Analog type control panel or touch screen HMI based control panel as per user requirements. There are series of optional sensors and interlocks can be offered as per individual user requirements.

Technical Specification of Rapid Mixer Granulator

Model RMG 10 RMG 25 RMG 100 RMG 150 RMG 250 RMG 400 RMG 600
Gross Capacity in Ltrs. 10 25 100 150 250 400 600
Working Capacity in Ltrs. 8 20 80 120 200 320 480
Main Motor – H. P. 2/3 H.P. 3/5 H.P. 7.5/10 H.P. 10/12.5 H.P. 22/30 H.P. 30/40 H.P. 40/50 H.P.
Impeller Motor RPM 75/150 75/150 75/150 75/150 100/150 100/150 100/150
Chopper Motor – H. P. 1/1.5 H.P. 1/1.5 H.P. 2/3 H.P. 3/5 H.P. 3/5 H.P. 5/7.5 H.P. 5/7.5 H.P.
Chopper Motor RPM 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
Weight Kgs. Approx. 425 650 1400 1600 2000 2500 3000
Length in mm approx. 1450 1800 1900 2100 2150 2750 2850
Width in mm approx. 600 1200 1300 1900 1900 2420 2530
Height in mm approx. 950 1400 1450 1500 1650 1900 2070
Lid Opening Height in mm approx. 1060 1600 2150 2300 2550 2950 3250

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
