Description

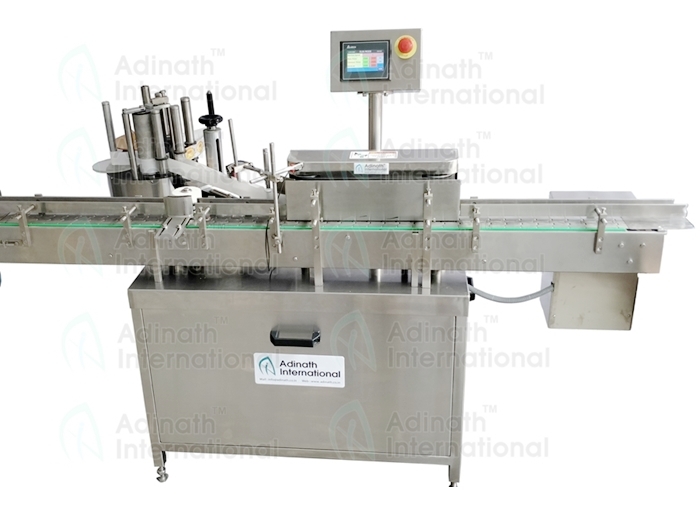

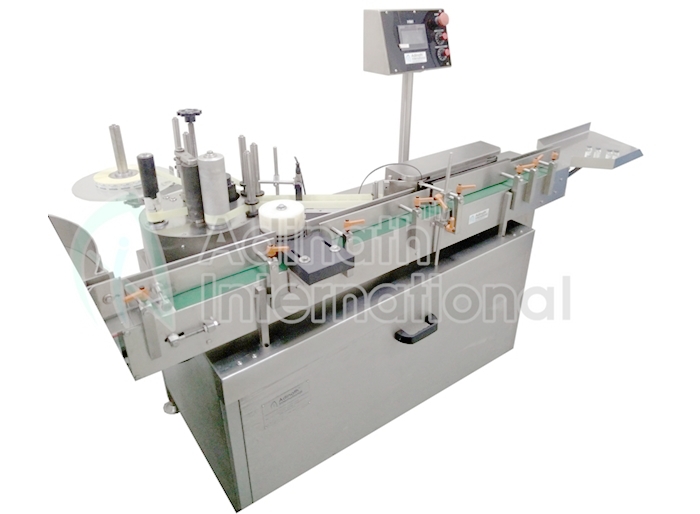

Automatic two side front and back sticker labeling machine uses for pasting labels on both the sides of containers. Double side labeler uses for pasting labels on square, oval, rectangular bottles which requires labels on each side of the surface. Machine having fully automatic with conveyor belt mechanism for transportation of containers. We have different machine models which can do ranging from 60 per minute to 300 per minute. With servo controlled label dispensing system, machine perform precise label placement operations. Understandably our automatic double side sticker labeling machine eliminates manual labeling activities and control parameters accurately.
Adinath’s automatic two side front and back labeling machine consist HMI based touch screen for enhanced accessibility. Owing to its precise technology and VFDs, the machine makes precise labeling on single side or double side a breeze.
This machine is profusely uses in below industries:
- Pharmaceuticals
- Cosmetics
- Edible oil
- Lubricant oil
- Hair oil
- Talcum powder
- Hair developer
- Cosmetic lotion
Features of Double Side Labeler
- PLC HMI based machine operation.
- Servo based control mechanism.
- Single pot on-line speed variation control.
- Adjustable label application height.
- Synchronized speed of pressing device, conveyor belt and label dispensing.
- No need to change parts or tools.
- Built-in protection against voltage fluctuations.
- Made of stainless steel.
- Low maintenance.
- Camera based vision system can be provided on demand on custom made machines.
- Built-in A.C variable frequency drive system.
Working Principle of Sticker Labeling Machine

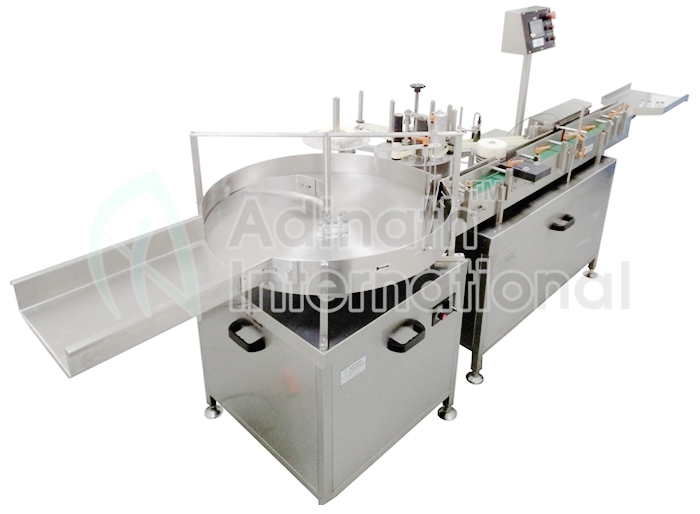

The infeed turn table is uses for loading the bottles from where they are moved to the machine’s conveyor. Conveyor has a linear movement and it reaches the labeling station. The machine consists of a special type of mechanizing roller spacing device for performing the label sticking operation at the labeling station. Batch number and other information can be printed in a feasible manner if you choose to have a batch printing device with the machine. You can also choose to have a camera based vision inspection system to keep the entire process under strict supervision which stops the operation if it is not up to the mark. After labeling operation load receive onto outfeed collection tray.
Technical Specification of Labeler Equipment
Model | AVSL 80 | AVSL 150 | AVSL 250 |
Vial Sizes | 2ml to 250ml | 2ml to 250ml | 2ml to 250ml |
Speed | Up to 60 Labels per minute depending on container and label characteristics | Up to 120 Labels per minute depending on container and label characteristics | Up to 200 Labels per minute depending on container and label characteristics |
Label Height | 8mm to 90mm | 8mm to 90mm | 8mm to 90mm |
Label Length | 12mm min. | 12mm min. | 12mm min. |
Label Roll Dia. | 400mm | 400mm | 400mm |
Label Roll Core Dia. | 75 / 76mm | 75 / 76mm | 75 / 76mm |
Gap Between two Labels | 3mm approx. | 3mm approx. | 3mm approx. |
Power Load | 1 H. P. | 1.5 H. P. | 3 H. P. |
Power Voltage | 220 VAC Single Phase Power Supply (50/60 Hz) | 220 VAC Single Phase Power Supply (50/60 Hz) | 220 VAC Single Phase Power Supply (50/60 Hz) |
Product Feeding Belt height | 850mm to 950mm adjustable | 850mm to 950mm adjustable | 850mm to 950mm adjustable |
Machine footprint | 1500mm(L) X 1200mm(W) X 1100mm (H) approx. | 2000mm(L) X 1350mm(W) X 1100mm (H) approx. | 2500mm(L) X 1350mm(W) X 1100mm (H) approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
