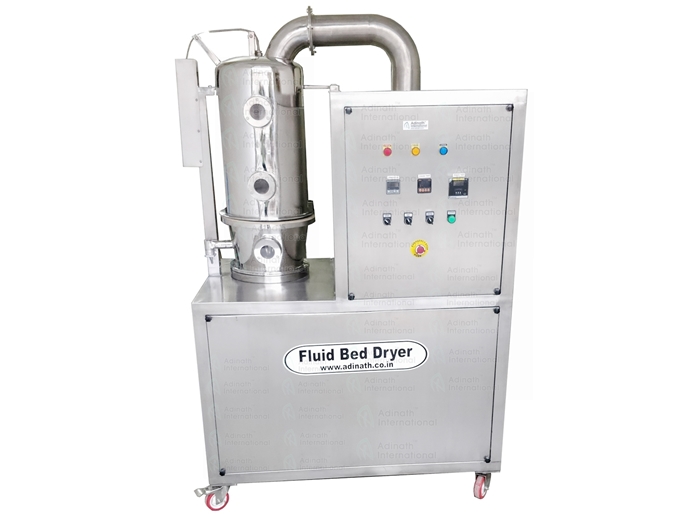

• Fluid Bed Dryer R&D Lab Model


Fluid Bed Dryer R&D lab model is uses for fluidized bed drying which is a pretty common process in the pharmaceutical industry. This process is needed in order to achieve optimum moisture apart from applying coatings or binders before proceeding for other processes for tablet formulation.

Our 5 liters fluid bed dryer is an efficient and economical solution for small batch sizes, but due to its scalable capabilities it can be scaled up for growing needs in future. Specifically designed for lab work and small batch processing, our lab scale fluidized bed drying system is equipped with features that allow maximum flexibility for batch. It also has height adjustability features and an ultra-modern touch screen that offers easy to read schematics for better control and diagnostics. The operator can seamless monitor the smallest of bit of every operation and since it has a robust dust collection system with cartridge filter system that’s easy to maneuver, you can expect phenomenal productivity.

Our 5 liters fluid bed dryer is loaded with satin type filter bag with fingers. Its sampling system (optional) allows you to keep an eye on all results during every cycle.

For more information related to our fluid bed dryer R&D lab model, feel free to get in touch with us.

Fluid Bed Dryer Working Principle

Product to be loaded onto product bowl and then to be fitted onto bottom chamber of the machine. Once machine started then heated and filtered air entered to the chamber which spread powder/granules into inner atmosphere of the equipment. Due to heated air spray onto powder moisture evaporates. There are filter bags from which air go out through damper. These filter bag prevent powder to go out into damper. In case of filter bag jammed due to excess power stuck into it, there is pneumatically operated shaking system provided to clear powder into bags. After process it over bowl can be taken out and discharges into another container for further process.

Technical Specification of Small FBD Machine

Model AFBD – 3 AFBD – 5 AFBD – 10
Gross Volume 7 Liters approx. 10 Liters approx. 20 Liters approx.
Batch Capacity at 0.5 bulk density 2.5 kgs approx. 4 kgs approx. 8 kgs approx.
Power Voltage 415 /220 V, 50 / 60 Hz. 415 /220 V, 50 / 60 Hz. 415 /220 V, 50 / 60 Hz.
Total load 7.5 kVA 8.5 kVA 12 kVA
Drying Temp in ° C 80° C max. 80° C max. 80° C max.
Heater 6 K.W. 8 K.W. 8 K.W.
Consumption Max. 100 Nm³ / h Max. 100 Nm³ / h Max. 100 Nm³ / h
Air Pressure 5 – 6  bar 5 – 6 bar 5 – 6 bar
Overall Dimensions L x W x H in mm 1450 x 985 x 1770 1450 x 985 x 1830 1450 x 985 x 1770
Net Weight 320 kgs. approx. 325 Kgs. approx. 489 kgs. approx.
Gross Weight 620 kgs. approx. 620 kgs. approx. 660 kgs. approx.
Free Air Flow for inlet air (m³/hrs) ±10% approx. 100 m³/hour 200 m³/hour 300 m³/hour

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
