Description
Auger powder filler or auger filling machine is uses in packaging powdered products which are uses across various industries including pharmaceutical, chemicals, metal, plastic, agriculture and food production. Adinath International is an accomplished auger powder filling machine manufacturer in India offering auger filling machine with truly life-changing benefits as far as product packaging is concerned. Auger filler offers myriads of benefits including safety of the workers and environment protection, apart from high return on investment..
As a leading manufacturer and exporter of auger filling machine in India, Adinath offers all types of auger powder fillers including-
– Automatic auger filling machine

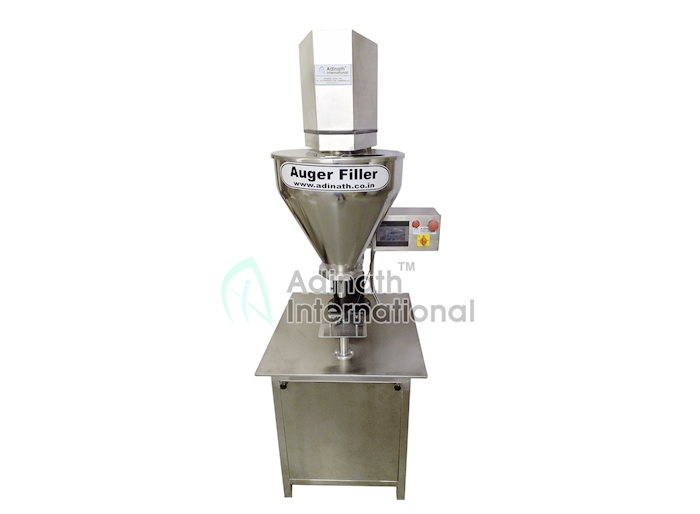

– Semi-automatic auger filling machine
– Table top auger filling machine
– Gravimetric auger filling machine
– Fill by weight auger filling machine
– Multiple auger filling machine
– Magnetic clutch brake auger filling machine
– Servo driven auger filler
Automatic auger powder filler can be sub-categorized into single headed automatic auger filling machine, dual-head automatic auger filling machine, economic single head automatic auger filling machine, multi-head automatic twin auger filling machine, single head auger filler with embedded check weight.
Benefits of Auger Filling Machine
Features of all of the machines mentioned above vary; however, by and large all of these machines offer the following advantages-
- High-efficiency
- Easy to move
- Condensed structure
- Apt for both free-flowing and less free-flowing products
- Dust free with fine powders
- Cost-effective
- Easy to operate due to a programmable logic controller and touch screen with multiple languages
- Corrosion resistant as it is made of premium stainless steel
- Well-suited for all sorts of fine powders
Working Principle of Auger Filler
The operator sets the filling parameters on the control system of the machine. The operator has to manually feed containers one by one in manual or semi-automatic filling machines. Each filling cycle will need to be initiated using a finger or footswitch. In automatic auger filling machines, a power conveyor system is provided in order to queue the containers required to be filled. Feed the product to the auger screw using the hopper. Please note that auger fillers are volumetric filling machines and do not weigh the products before every filling cycle begins. Some auger filling machines are provided with a weighing scale as well. Auger drive rotates the auger screw at a constant speed and feeds the powder product into the tube of the hopper. The agitator blade rotates in the opposite direction to that of the auger screw and it is separately controlled. This helps achieve a homogenous mixture and prevents any inconsistencies during the formation of the product. This blade extends till the throat of the funnel and prevents any sort of cavitation or rat-holing.
Technical Specification of Auger Filler
| Models | AI-APF 1 | AI-APF 2 | AI-APF 3 |
| Production Output | Up to 30 bottles/minute | Up to 60 bottles/minute | Up to 90 bottles/minute |
| Fill Volume | 5gms. to 60gms. in Single Dose System | 5gms. to 60gms. in Single Dose System | 5gms. to 60gms. in Single Dose System |
| Container Size | Custom made as per required container size | Custom made as per required container size | Custom made as per required container size |
| Filling Accuracy | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder |
| Power Load | 2 H. P. | 3 H. P. | 4.5 H. P. |
| Overall Dimension | 1810 mm (L) x 905 mm (W) x 1900 mm approx. | 2300 mm (L) x 905 mm (W) x 1900 mm approx. | 3000 mm (L) x 905 mm (W) x 1900 mm approx. |
| Conveyor Height | 850 – 950 mm adjustable | 850 – 950 mm adjustable | 850 – 950 mm adjustable |
| Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
FAQ of Auger Filling Machine
What types of Auger Filling Machines does Adinath International offer?
Adinath offers Automatic, Semi-automatic, Table-top, Gravimetric, Fill-by-weight, Multiple-auger, Magnetic clutch brake, and Servo-driven auger fillers. Automatic models further include single-head, dual-head, economic single-head, multi-head twin-auger, and single-head with embedded check-weigher variants.
What are the key benefits of using an Auger Filling Machine?
Key advantages include high efficiency, compact and easy-to-move design, suitability for both free-flowing and less free-flowing powders, dust-free operation with fine powders, cost-effectiveness, corrosion resistance (premium stainless steel construction), easy operation via PLC and multi-language touch screen, and compatibility with all sorts of fine powders.
How does an Auger Filling Machine work?
The operator sets filling parameters on the control system. Product is fed into the hopper. The auger screw rotates at constant speed to dispense powder through the tube, while a separately controlled agitator blade rotates in the opposite direction to maintain a homogeneous mix and prevent cavitation or rat-holing. Containers are fed manually (semi-automatic) or via conveyor (automatic).
Are Auger Fillers volumetric or gravimetric?
Standard auger fillers are volumetric machines and do not weigh product before each cycle. Some models include a weighing scale (gravimetric / fill-by-weight versions) for higher accuracy when required.
What production outputs and fill volumes are available?
Depending on the model (AI-APF 1 / 2 / 3):
- Up to 30, 60, or 90 bottles per minute
- Fill volume: 5 g to 60 g in a single-dose system
Container sizes are custom-made as required.
What is the typical filling accuracy?
Filling accuracy is ±2–3% in single dosing, depending on the consistency and uniformity of the powder’s bulk density.
What materials and construction features make the machine suitable for industrial use?
Machines are built from premium stainless steel for corrosion resistance and are designed for dust-free handling of fine powders, ensuring worker safety and environmental protection.
What power and utility requirements do the machines have?
Power load ranges from 2 HP to 4.5 HP depending on the model. Electrical supply is 415 VAC 3-phase and 220 VAC single-phase (50 Hz) with A.C. drive. Voltage can be adjusted to meet the customer’s domestic power requirements. Conveyor height is adjustable between 850–950 mm.
Can the machines handle both free-flowing and non-free-flowing powders?
Yes. Auger fillers are designed to handle both free-flowing and less free-flowing powders effectively, thanks to the combination of the auger screw and the counter-rotating agitator blade that prevents bridging and ensures consistent flow.
