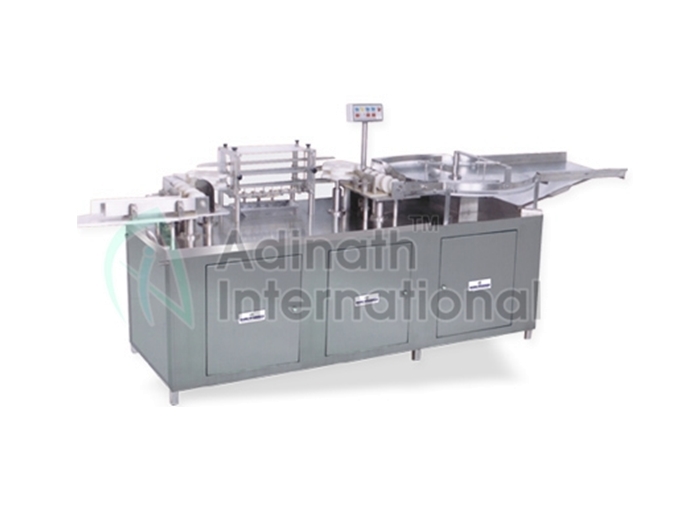

  • Bottle Airjet Cleaning Machine
Request A Quick Quote

Description

Bottle Airjet Cleaning Machine or air jet and vacuum cleaning machines are important equipments to clean plastic bottles with air. Equipment having usage in cleaning of pharmaceutical dry syrup bottles, cosmetic empty bottles, food products bottles to clean out any dust particles. Empty bottles received to manufacturer with some dust particles sometimes, if filling in it without cleaning may create big issue to manufacturer. Bottle air cleaning machine solve this complicated issue of production with complete inner and outer cleaning of bottles.



Machine is designed to ensure modular operation, where each individual bottle is positively clean with maximum number of washes. GMP compliance in the added advantage of such cleaning machine. Airjet Cleaning Machine applies compressed air through jets and also sucks through vacuum. Machine can be used to clean Glass/Plastic/Pet Bottles, Jars etc. Machine is suitable for cleaning of non-sterile products like Dry Syrups and Bulk Packing of Tablets & Capsules.

Machine with Built with Turn Table which feeds container in vertical position through conveyor to cleaning station, where cleaning heads grip the container through cup holder and starts the compressed air and then vacuum to clean the bottles. Machine finished with stainless steel finish & all contact parts in SS 316 and nylon materials, also having overload clutch system to prevent jamming during the operation. The manifold comprises of inner nozzles which jets compressed air in the bottle and an outer socket, which cover the mouth of the bottle and is connected to an exhaust, ensures perfect cleaning.

Salient Features of Airjet Cleaning Machine

  • “No Container – No Air – No Vacuum” system.

  • Eight Air nozzles with Vacuum mouth holder for cleaning.

  • All contact parts made out from SS 304.

  • Entire frame covers & non contact parts made out from SS 304.

  • Complete operation in vertical position.

  • Overload clutch for jamming.

  • Variable AC Frequency Drive System for speed adjustment.

  • Automatic Infeed & Out feed of Containers.

  • Intermittent Linear Motion of Machine.

  • Over load clutch is provided to prevent jamming on machine.

  • Quick change over with minimum use of tools.

Working Process of Airjet Cleaning Machine

Containers are fed on to infeed turn table of the machine from where they are transferred on to conveyor of the machine. Once bottles reaches to the Cleaning Station, proximity sensor provide pulse to the machine and pneumatic bottle stopper stops eight bottles. Intermittent motion nozzles come down onto bottles. Vacuum mouth holder hold bottles firm and start air purging and vacuum suction operations. Vacuum suction unit suck impurities from the bottle. Air and vacuum both done on same time to take out impurities from the bottles. After cleaning the bottle, pneumatic bottle stopper deactivates and bottles moves further on to conveyor for next operation.

Technical Specification of Bottle Air Cleaning Machine

Model AAVC 100 AAVC 200
Input Specification 30ml to 1000ml bottles 30ml to 1000ml bottles
Production Output Up to 80 bottles/minute Up to 180 bottles/minute
Power Supply 1.5 H.P. 2 H.P.
Electrical Supply 400 volts, 3 phase, 50 hertz 400 volts, 3 phase, 50 hertz
Optional Accessories Air Filter & Regulator

Bottle Inspection Station

Bottle Loading Platform

Air Filter & Regulator

Bottle Inspection Station

Bottle Loading Platform

Change Parts Nozzles and Mouth holder Nozzles and Mouth holder
Conveyor Height 875mm to 950mm adjustable 875mm to 950mm adjustable
Overall Dimension 2000mm (L) x 850mm (W) x 1300mm (H) approx. 2600mm (L) x 850mm (W) x 1300mm (H) approx.
Utility Compressed Air 100CFM Compressed Air 100CFM
Net Weight 350 kgs. approx. 450 kgs. approx.
Gross Weight 475 kgs. approx. 575 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
